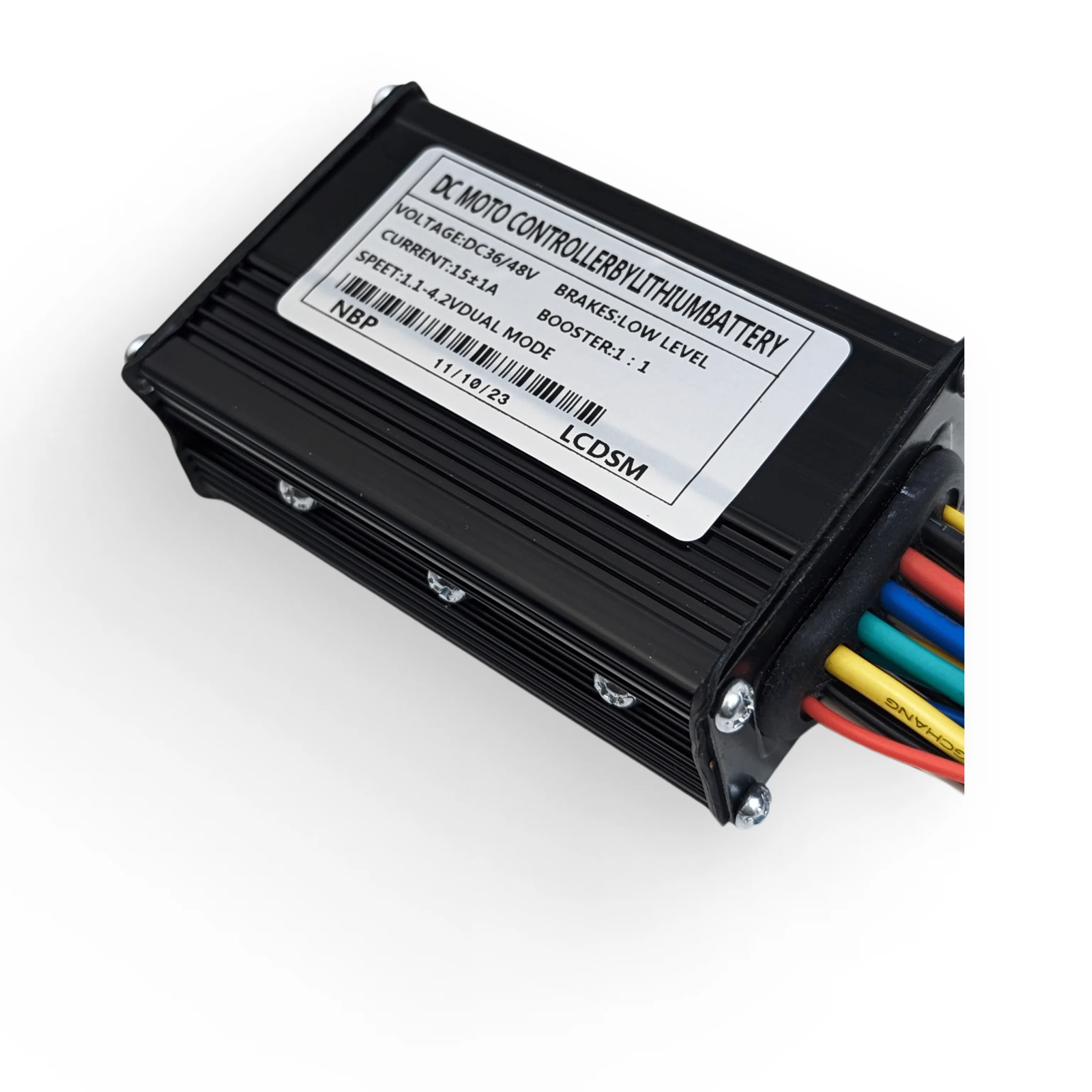

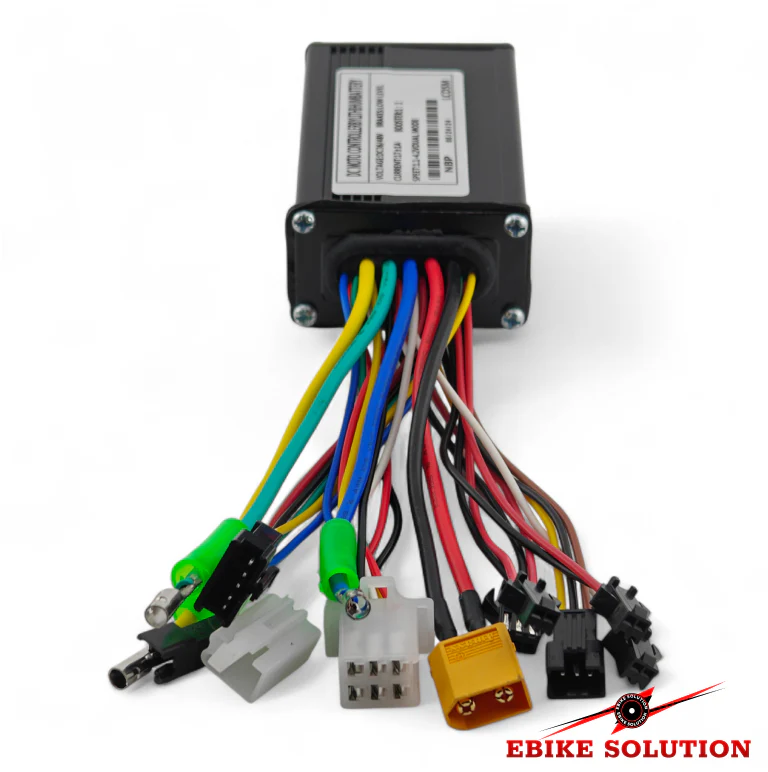

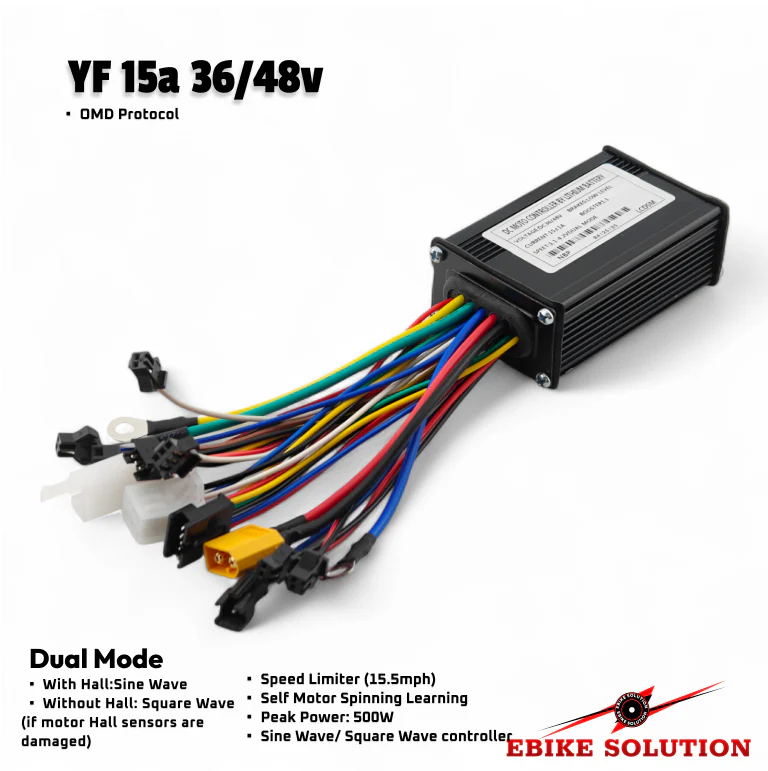

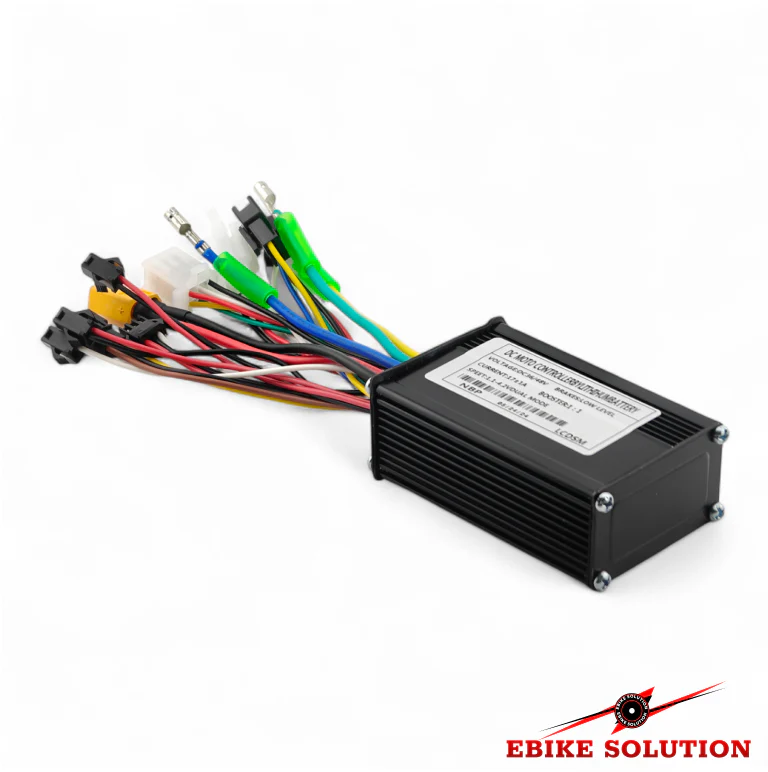

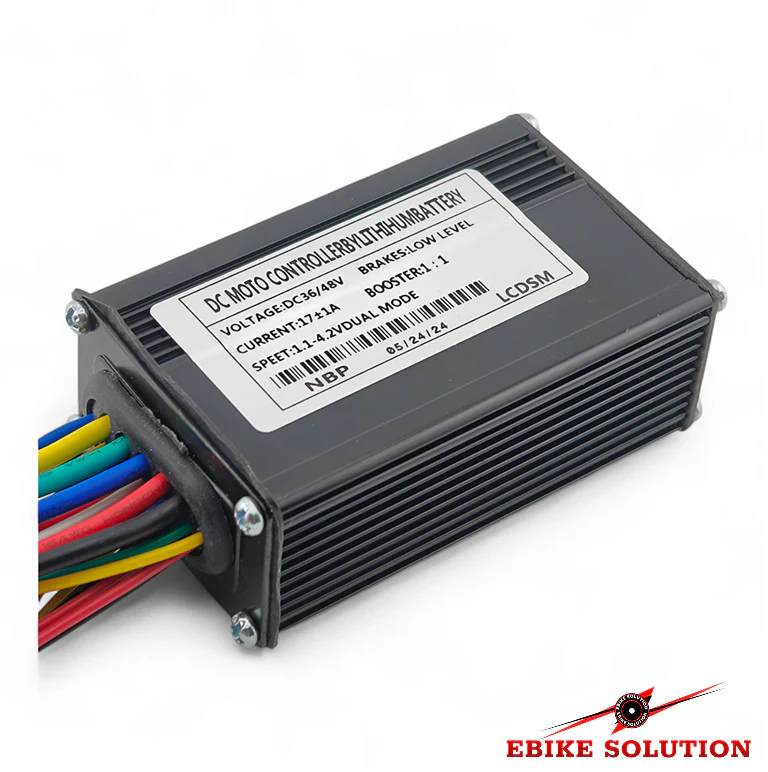

YF Ebike Controller Dual Mode 36/48V 15A Sine Wave

YF Ebike Controller Dual Mode 36/48V 15A Sine Wave

Features:

• Speed Limit ( will limit the speed to around 15.5 mph)
• Fast self-learning mode: quickly match all kinds of motors
• Smart Controller (can be used with any batteries/voltage adjusts based on the battery and can't be changed)
  from 36v(10s) Less Speed
  up to 48V (13s) More Speed

Specifications:

• Protocol: No.2 (LCD: SW900 / UKC1(omd) / M8 / S866 / EN06)
• Controller Type:
• Sine Wave (default)
• Dual Mode (disconnect the hall plug and will work in sensorless mode, handy when hall sensors are broken or motor cable damaged)
• Rated Voltage: DC 36-48V
• Power Output:
• 36V- 500W
• 48V 720W

• Motor Compatibility: 250-500W
• Maximum Current: 15±1A
• Rated Current: 7A
• MOSFETs: 6high-efficiency MOSFETs

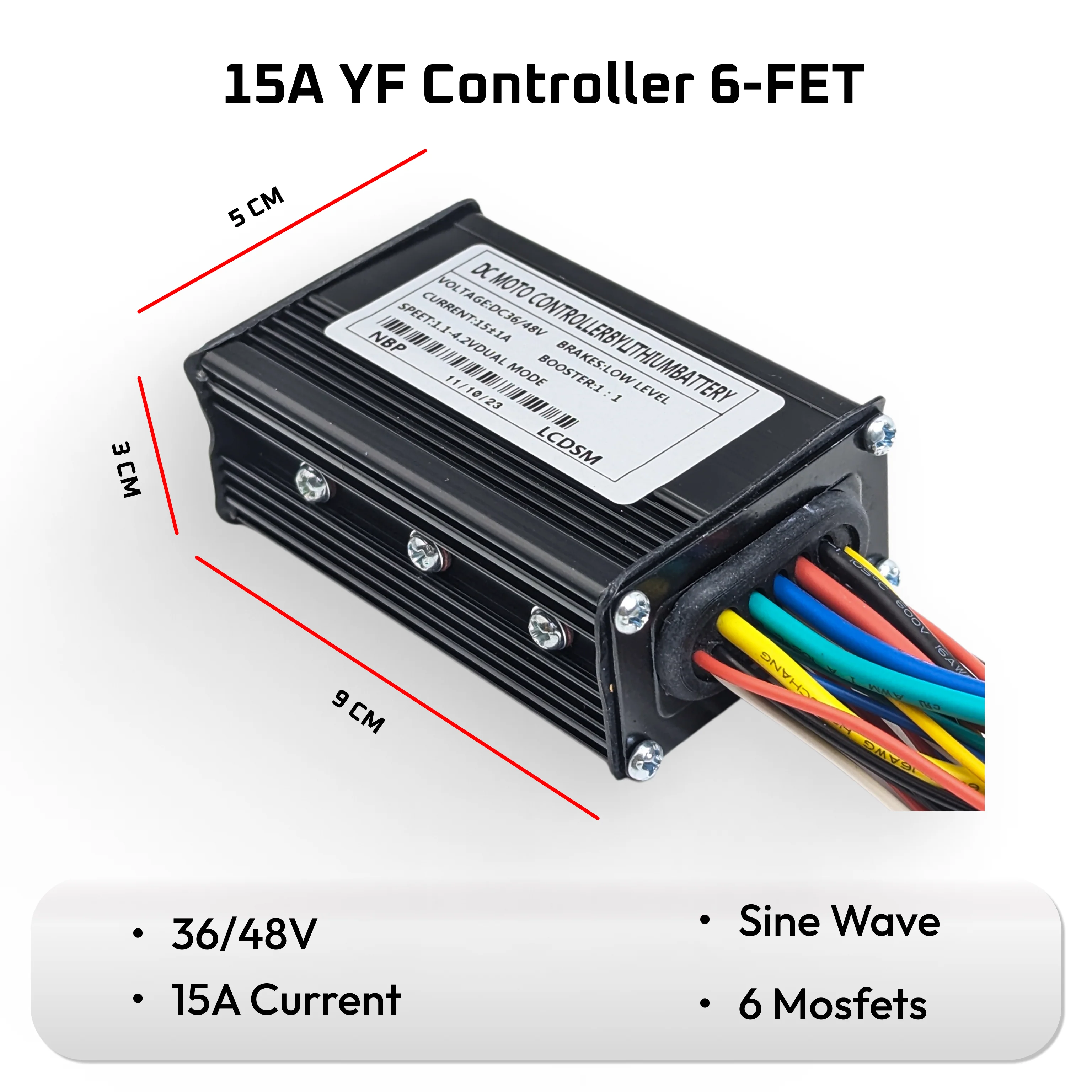

• Size:9x3x3cm
• Weight:350g approx
• Cable Length: 13–18 cm
• Battery Plug:  XT60
• Motor Phase Plug: Rings

Package Include:

• 1 X YF 15A Sine Wave Controller
