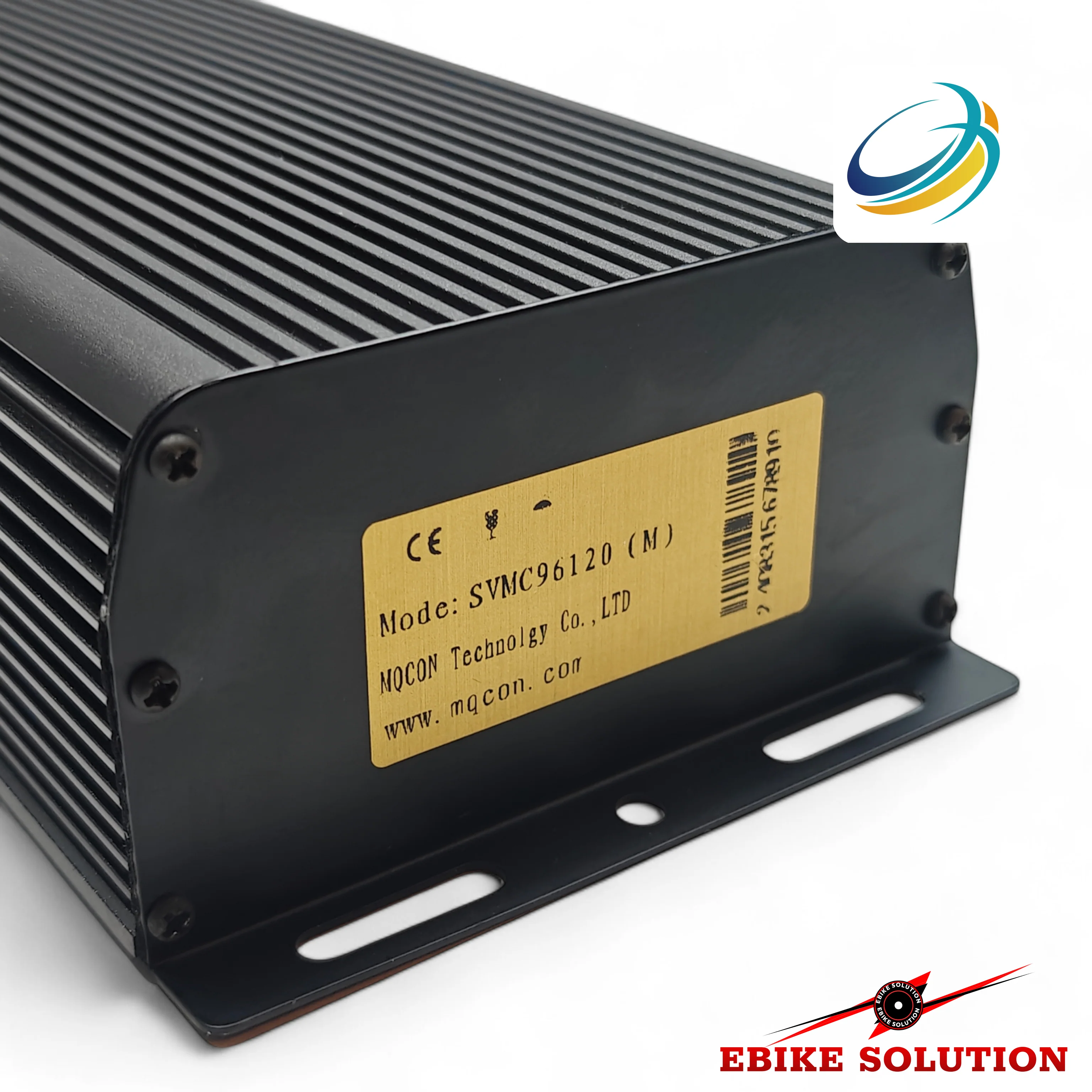

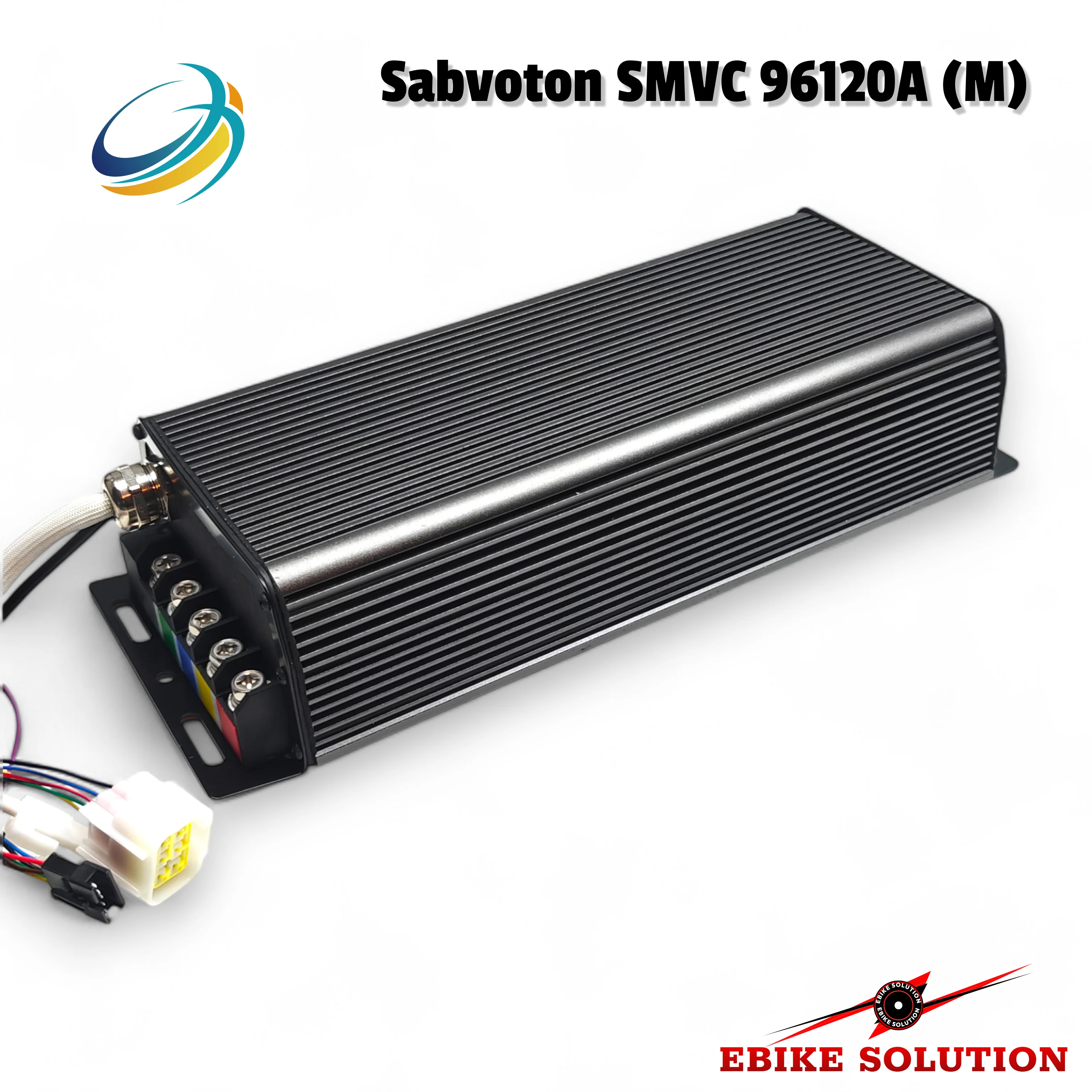

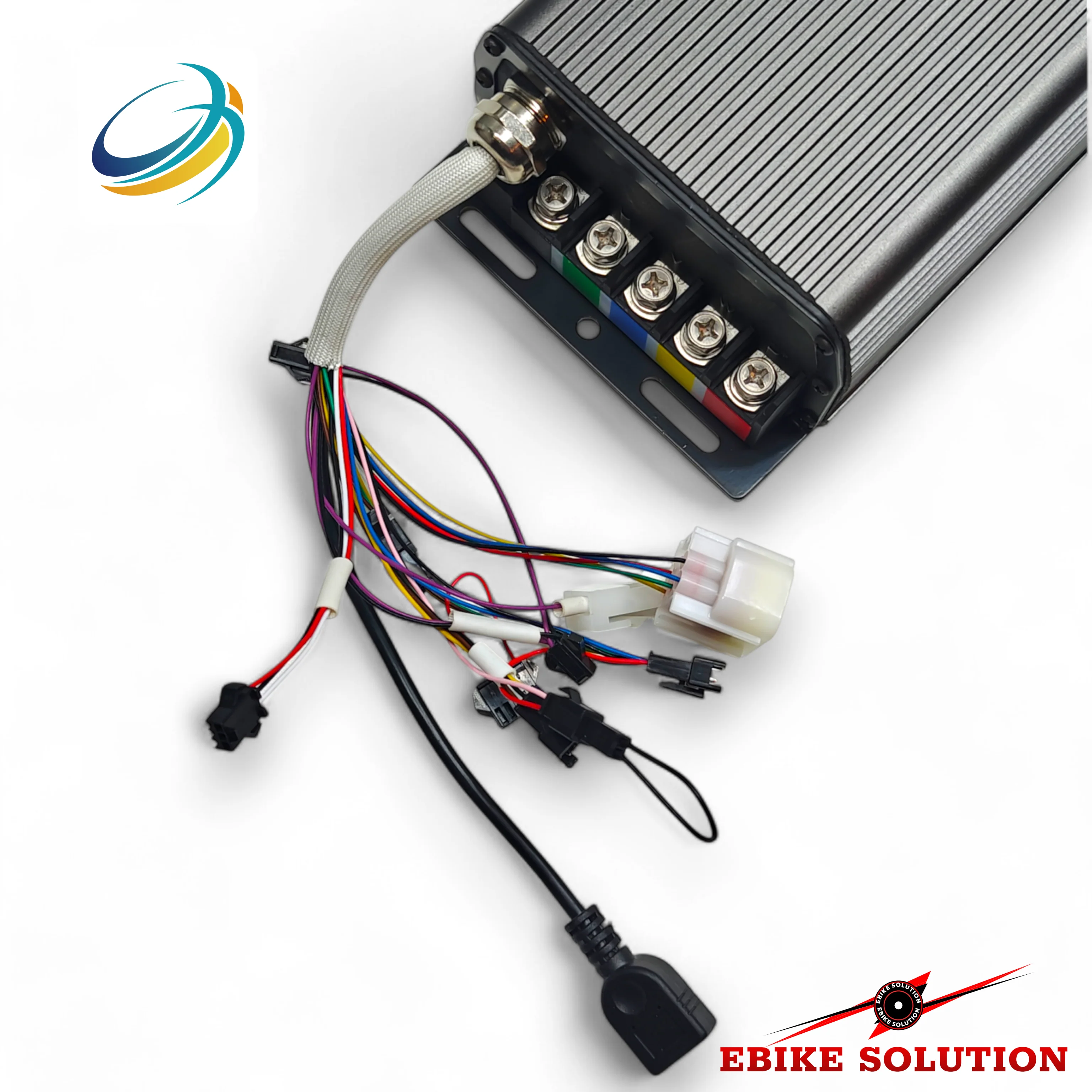

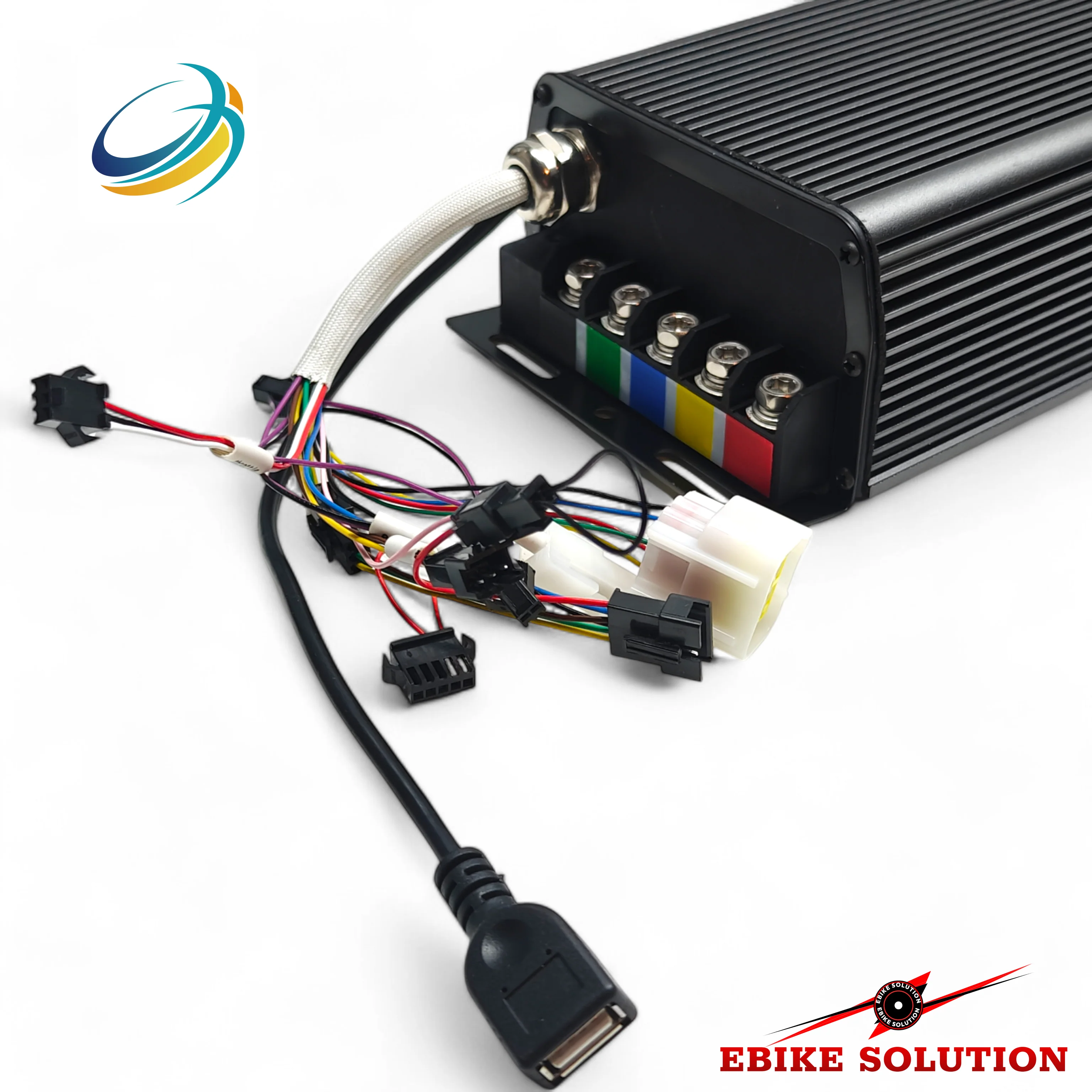

Sabvoton Controller V2 96V 120A Ebike Enduro Stealth Bomber SVMC96120M

Sabvoton Controller V2 48v-96V 120A Ebike Enduro Stealth Bomber SVMC96120M

96v- 26s Lithium Ion Battery

UK Stock Fast Delivery

Software download link

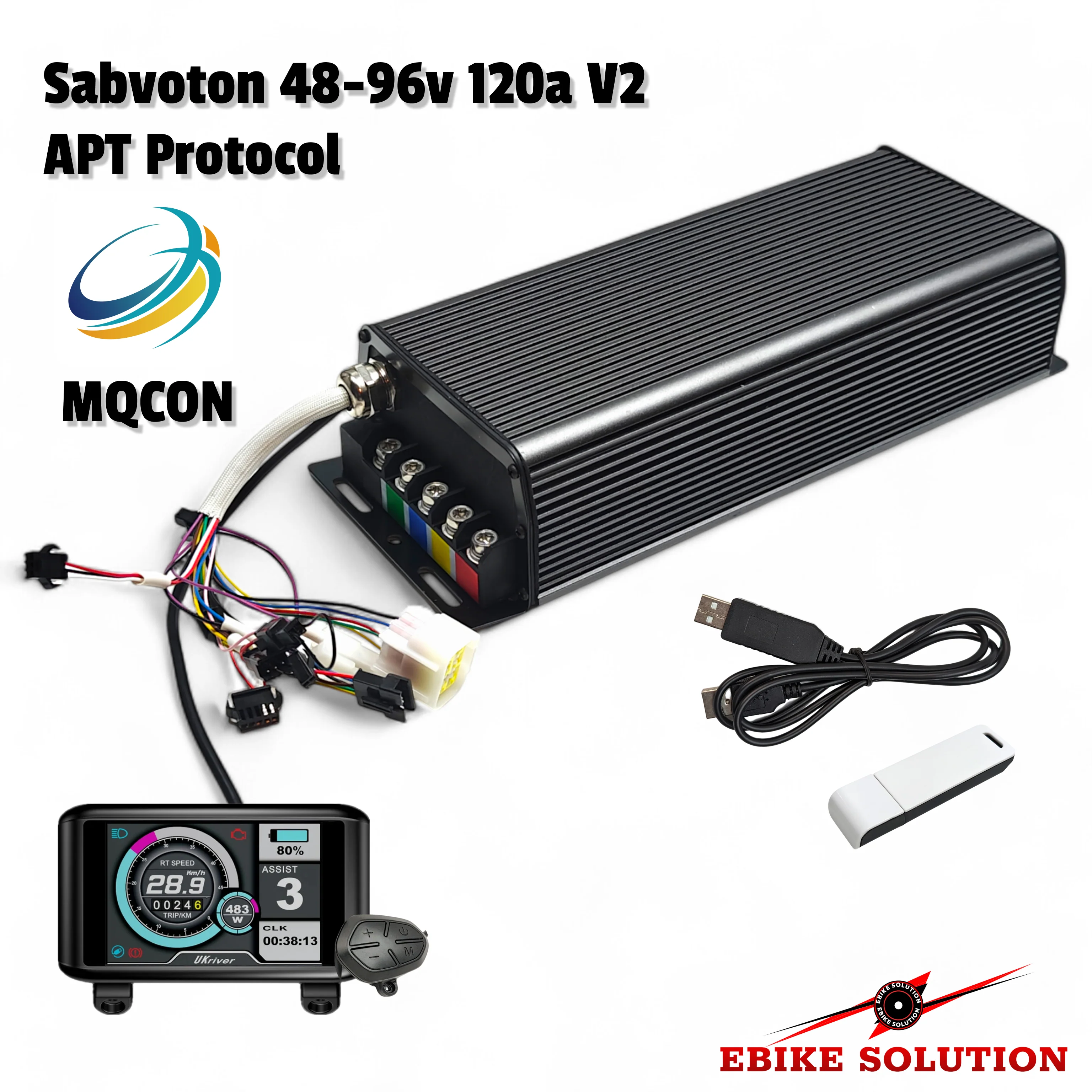

If you'd  like to get the display you must select option Sabvoton+ UKC1 Display ,otherwise you'll get only controller and usb cable.

PLEASE NOTE: This controller support any plug and play display on APT Protocol

Specification

• Power supply: 48V, 60V ,72V,96V battery , MAX DC current:120A , Max phase current:300A

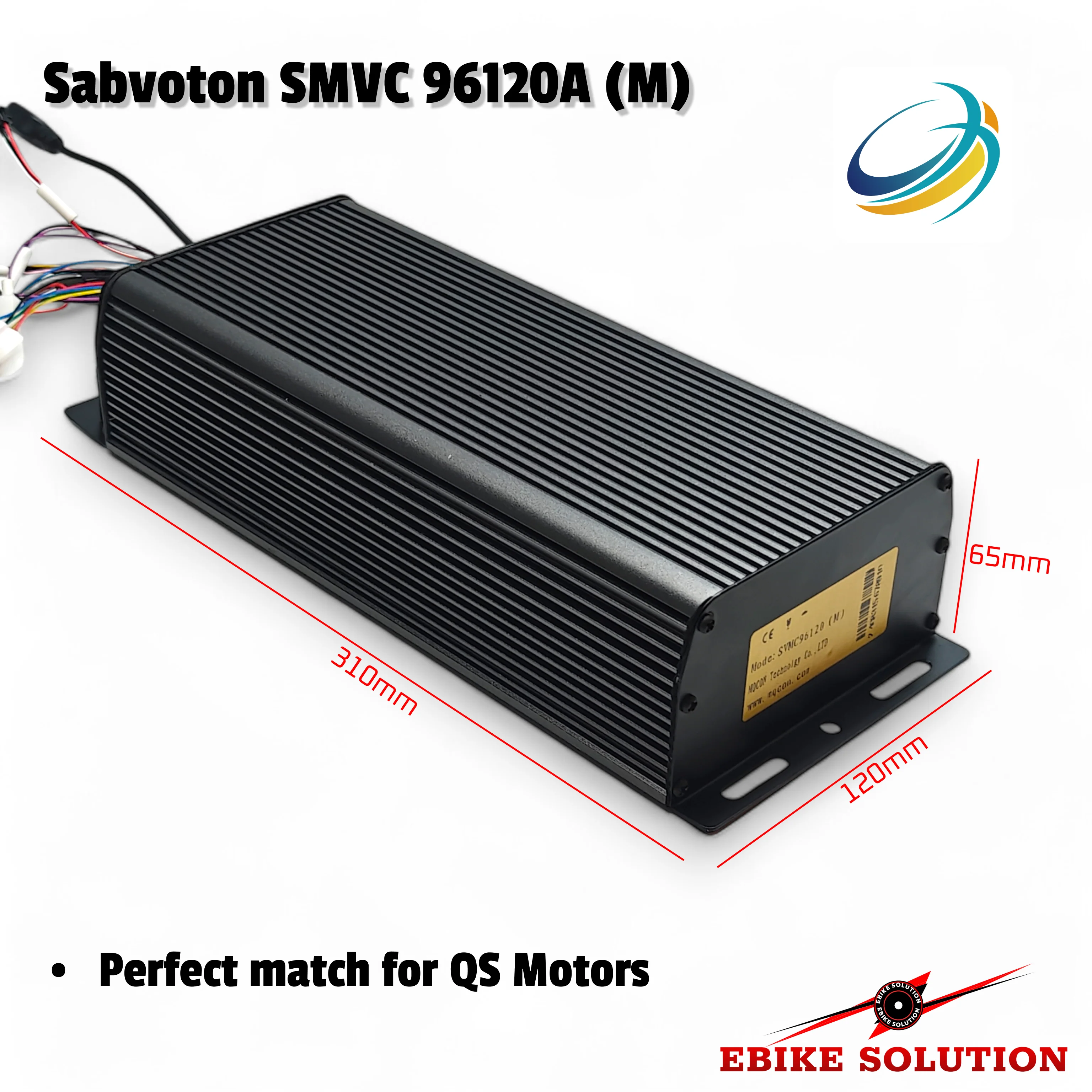

• Product Size: 310x120x65mm
• Net Weight: 2.2 kgs
• Single package size: 33*21*11.5cm
• Package Type: Carton Box with Foam for export shipping

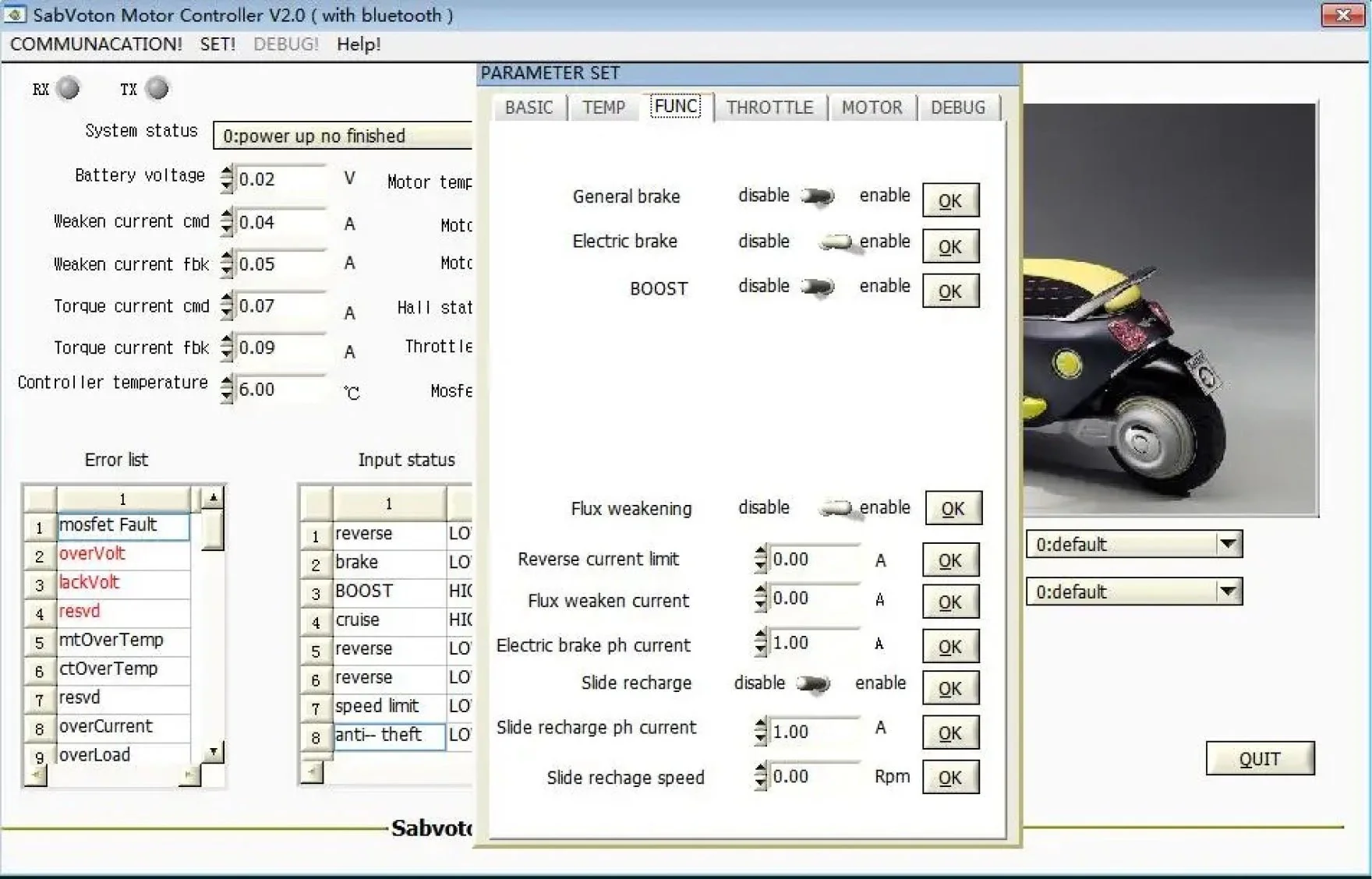

• Phone App or computer software can communicate with the controller to modify parameters


Features:

• FOC-180° sinusoidal drive controller applied to BLDCM or PMSM..
• It takes only 3 minutes for the motor to be well matched on its best electronic angle at the first time.
• The motor torque ripple will be reduced to the minimum, so as to ensure electric vehicle to run without any noise and vibration, smoothly, and comfortably.
• The precise current ring can provide accurate torque input to meet the requirement 0f large torque output during vehicle starting and climbing.
• The controller enjoys high efficiency due to space vector converter control algorithm which can effectively reduce the temperature rise of controller and extend battery life mileage
• Built-in various protection: locked-rotor protection, over-current protection, overload protection, over-temperature protection, speed protection, over-voltage protection ,under-voltage protection and so on, effectively ensuring the safety of electronic control system and vehicle.
• System status and fault intelligent management system can effectively monitor the current system operating mode external input state ,the case of system failure, and the LED flashes at the same time to facilitate the diagnosis and maintenance.

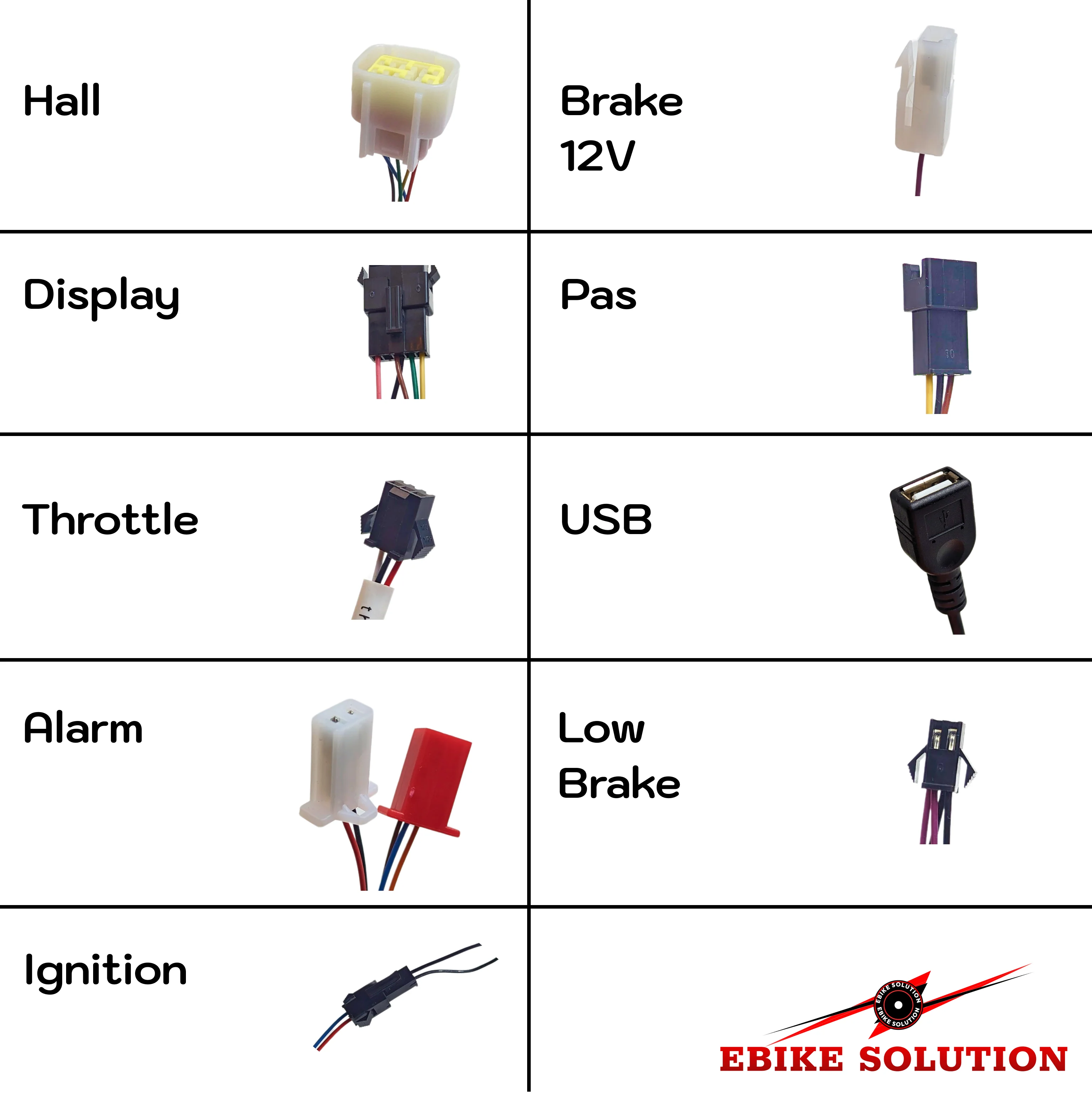

• The rich peripheral interfaces: reverse, cruise, anti-theft, electronic brake, etc.
• Parameter modifications and settings are available through online configuration with online computer
• CAN BUS is optional to communicate with body instrument and BMS

Package Includes:

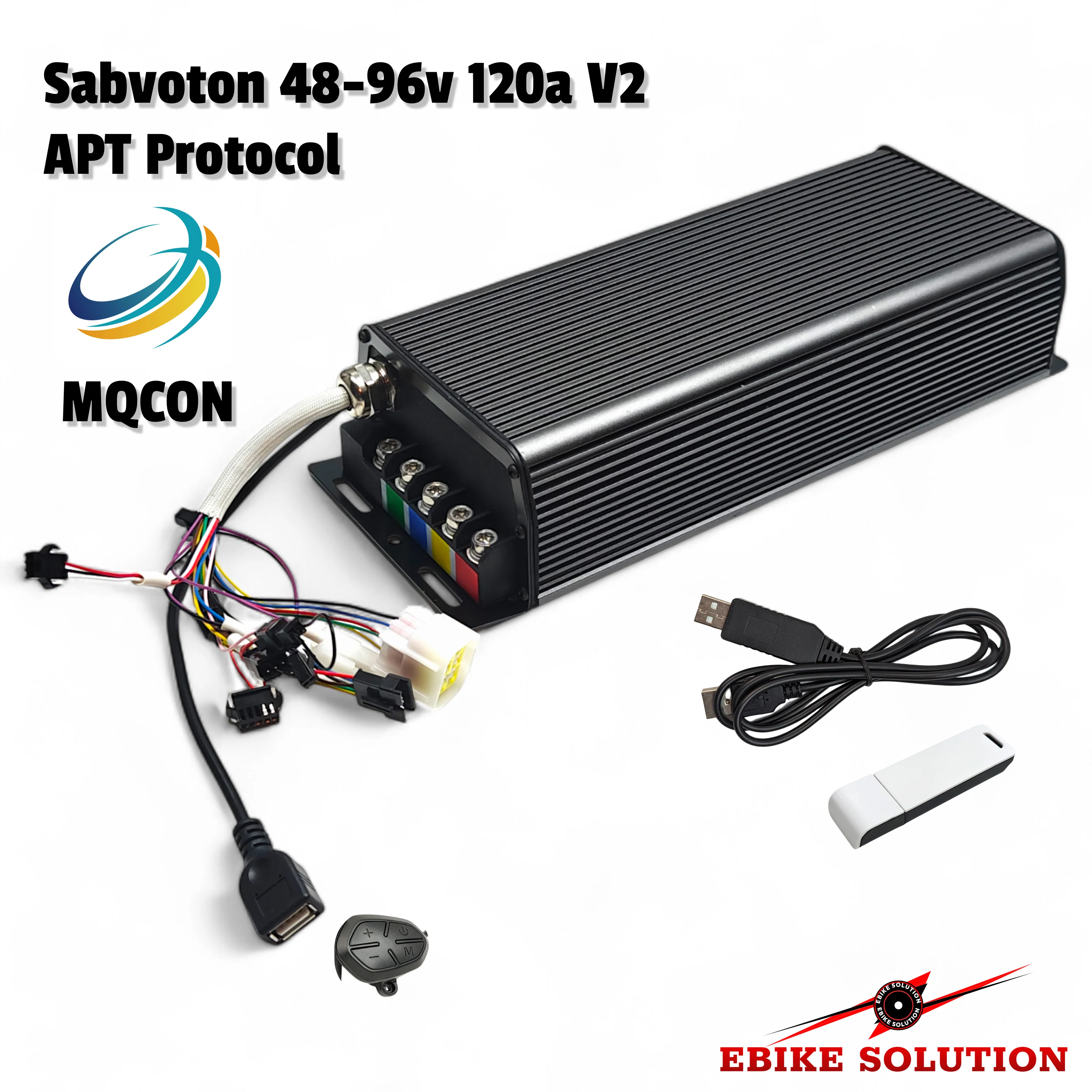

• 1 X Sabvoton Controller 96v 120A (according variation)
