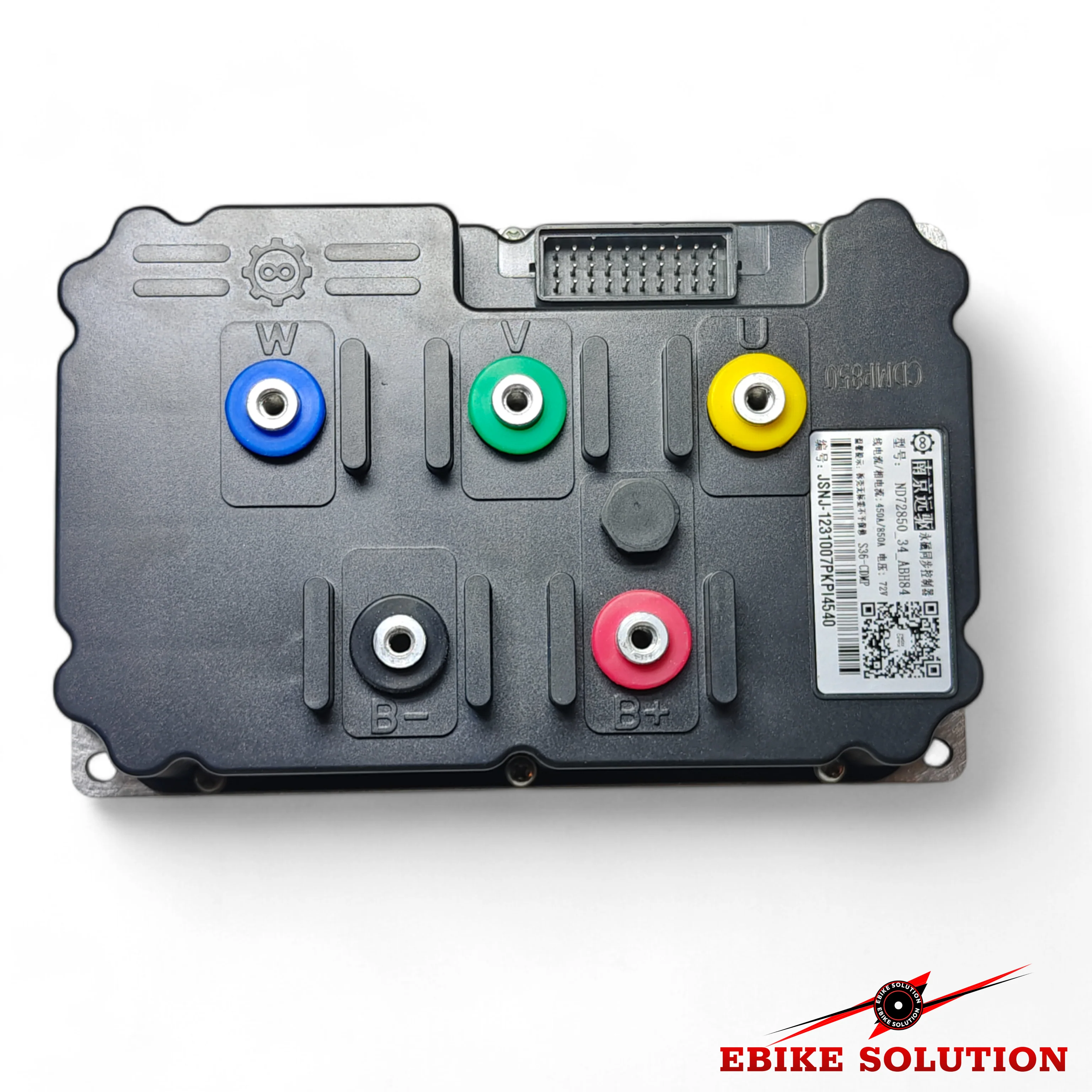

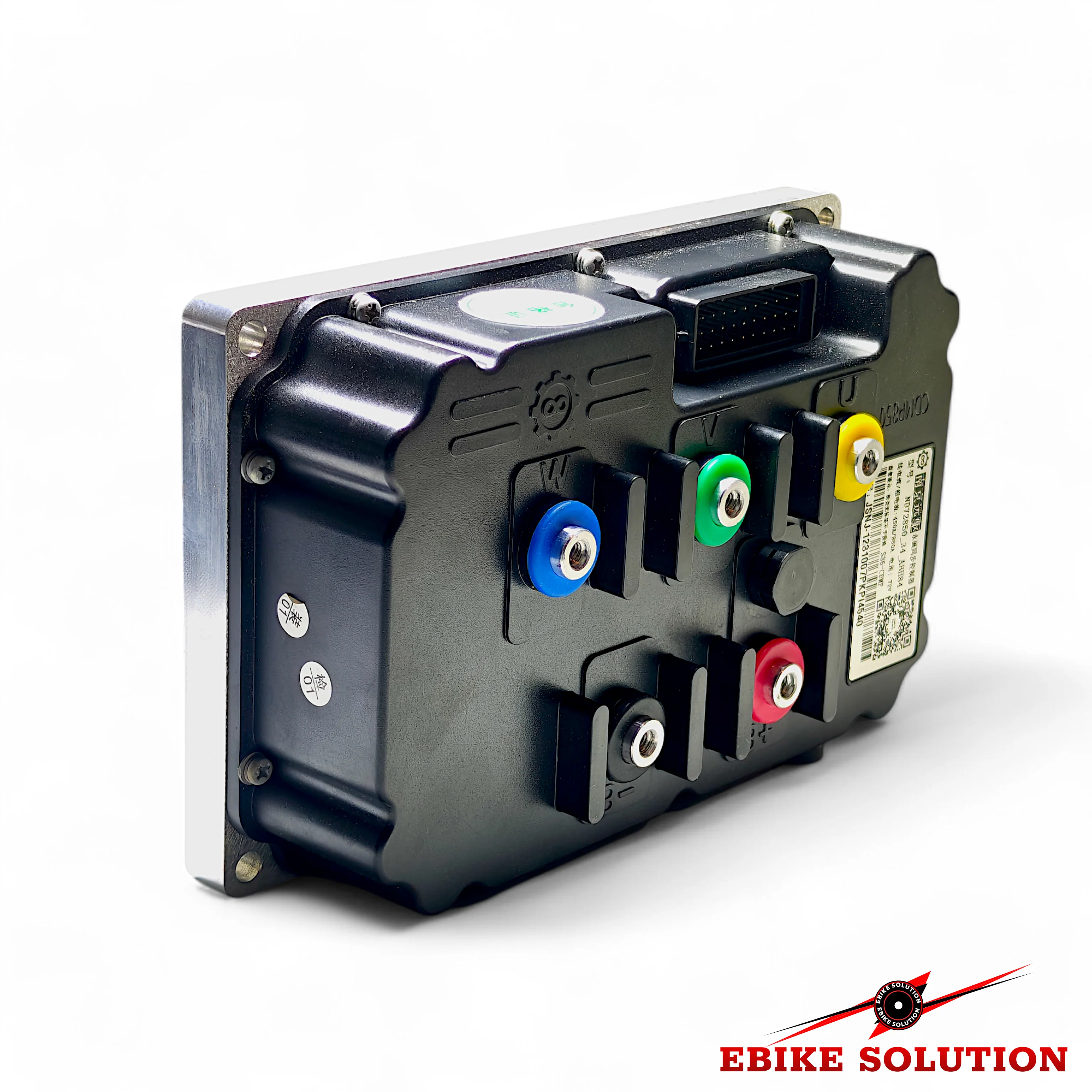

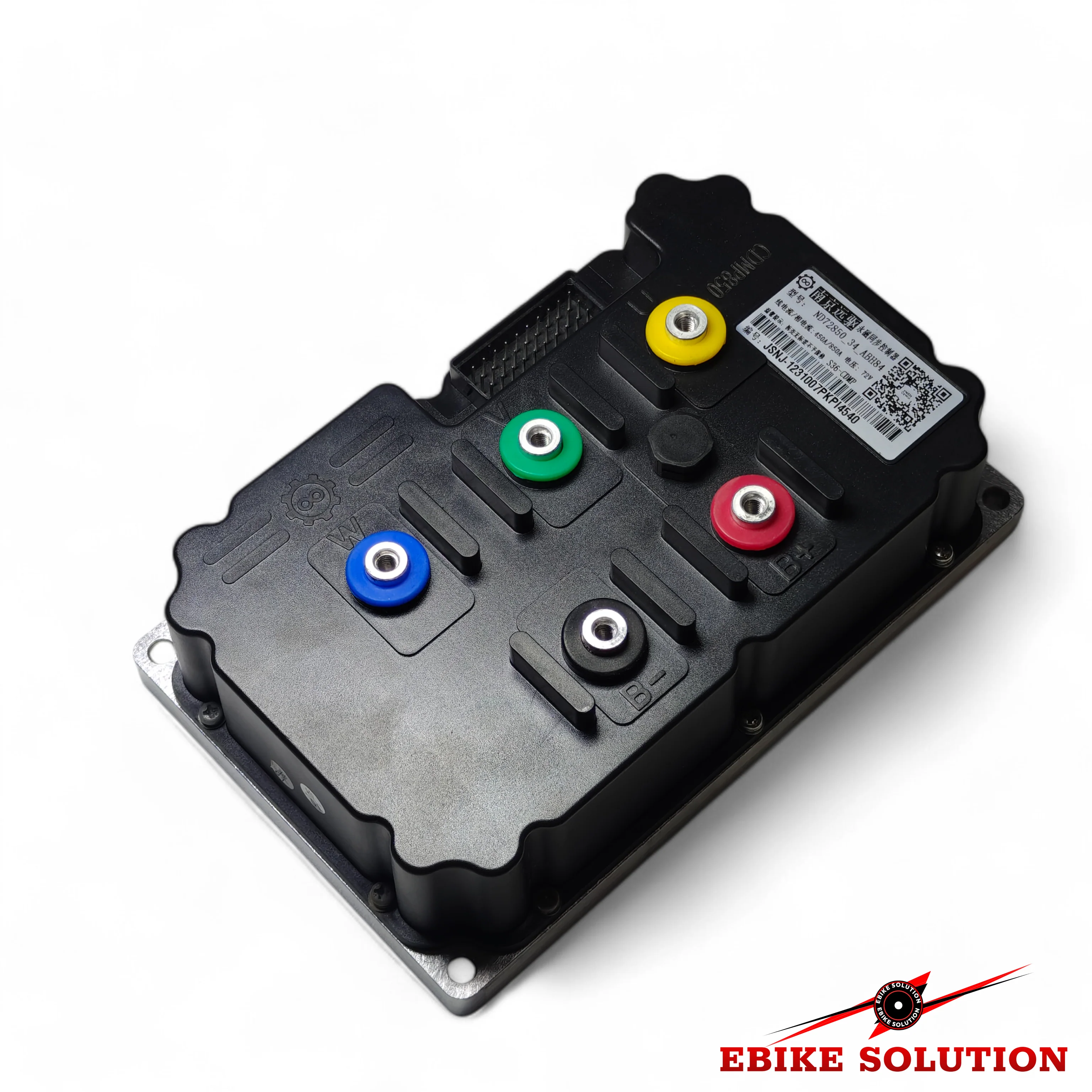

Fardriver ND72850 72V 850A EV Programmable FOC Controller Electric Scooter BLDC
Fardriver 72850 72V 850A EV Programmable FOC Controller Electric Scooter Motor BLDC Sine Wave
Order Guide
- Check your motor type: Is it a BLDC or PMSM Motor?
- Check the controller functions to ensure it's suitable for you.
- Check the controller size to ensure proper installation.
Key Features
- Suitable for middle and high-speed motorcycles with in-wheel motors, mid-mounted motors, and high-end electric tricycles.
- Uses high-quality, fully imported MOS core.
- Full metal shielding and aluminium heat dissipation structure.
- The hardware architecture and software implementation are perfectly matched and refined.
General Specifications
Key Features
- The ND series Hall one-line pass-through controller is a high-end, high-power permanent magnet synchronous motor controller.
- It offers advantages of high quality, high efficiency, and intelligence.
- Suitable for vehicle applications using various Hall motors.
- Ideal for middle and high-speed motorcycles with in-wheel motors, mid-mounted motors, and high-end electric tricycles.
- Uses high-quality, fully imported MOS core.
- Full metal shielding and aluminum die heat dissipation structure.
- The hardware architecture and software implementation are perfectly matched and refined.
General Specifications

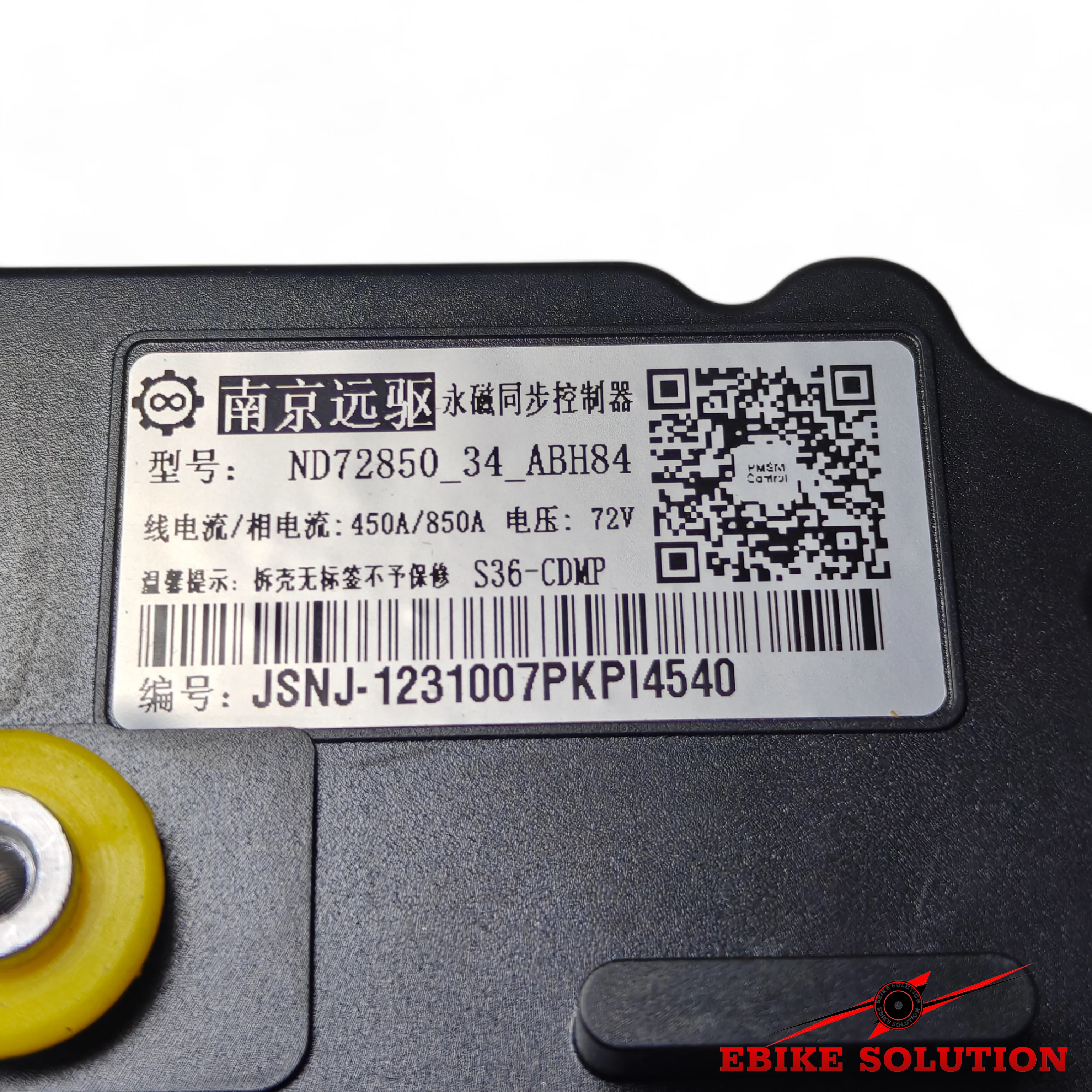

- Model: ND72850
- Working Communication: Hall Sensor
- Available Rated Battery Voltage: 48V/60V/72V
- Peak Battery Voltage: 88V
- Available Motor Power: 8000W
- Default Throttle Working Voltage: 0V - 5V
- Peak DC Current: 450A
- Peak Phase Current: 850A
- MOSFETs Detail: 42 FET
- Weight: 3.5kgs

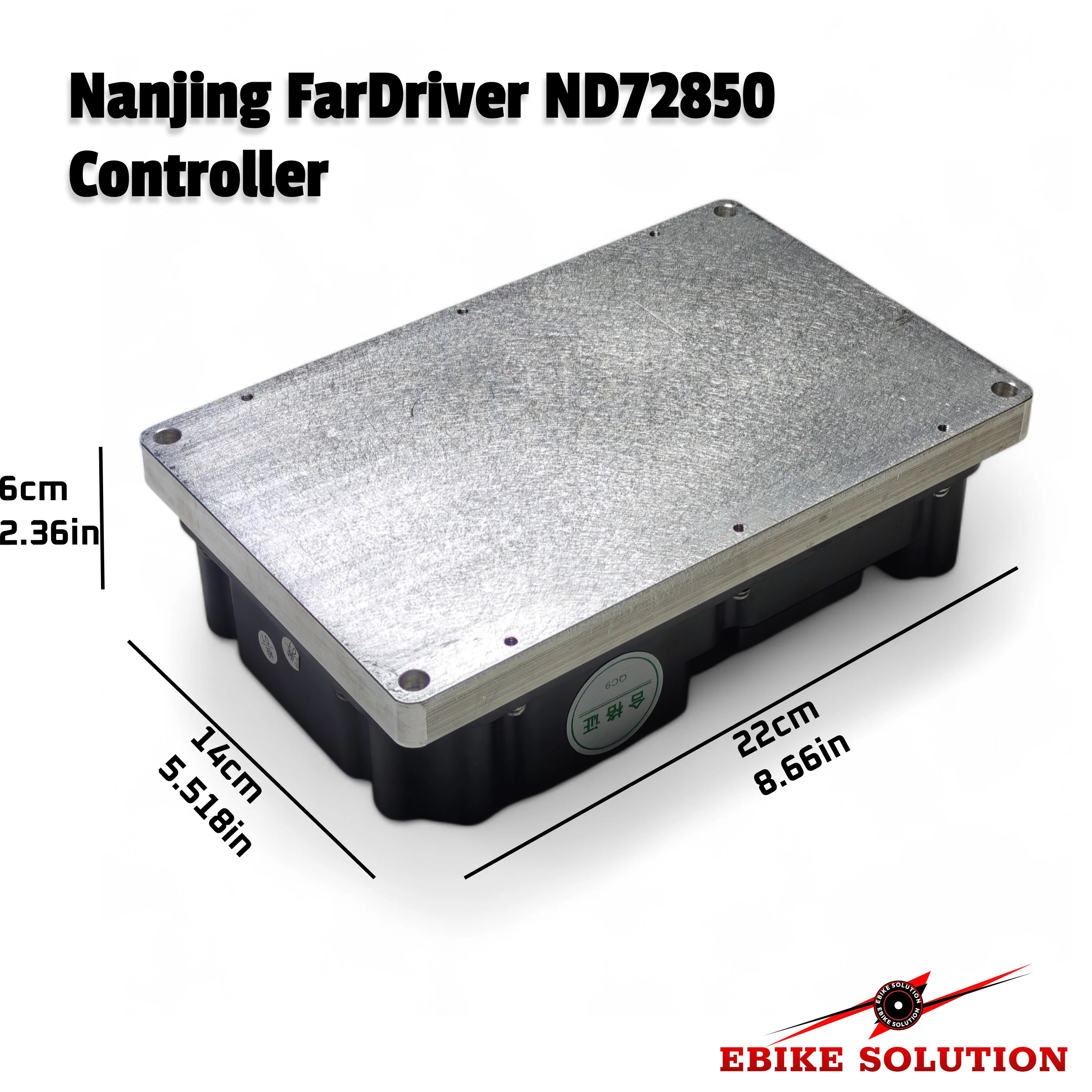

- Installing Size: 222mm * 142mm * 71mm
- Controller Design: Sine Wave BLDC
- Case Material: Aluminum
- Programmable Support: PC & Phone
- Suitable for: Electric bike, scooter, motorcycle, tricycle, kart, ATV
Note
- Due to factory adjustments, sometimes the DC or phase current may vary slightly (either lower or higher than described), depending on the PCB board in stock.
- However, these variations do not significantly affect the controller's performance.
- If you are concerned about these differences, please consider carefully before purchasing.

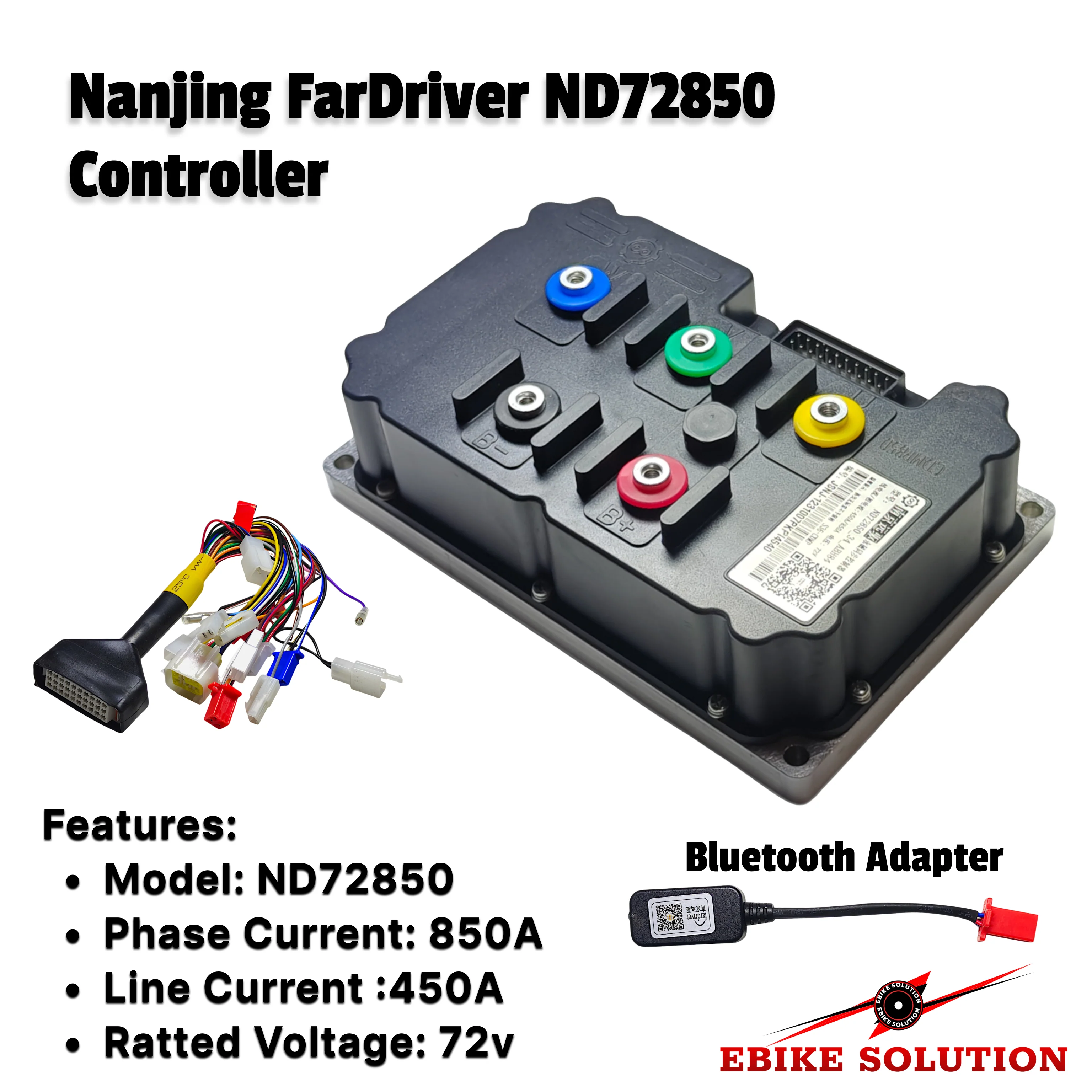

Package Included
- 1 X Controller
- 1 X Wiring harness
- 1 X Bluetooth Dongle
