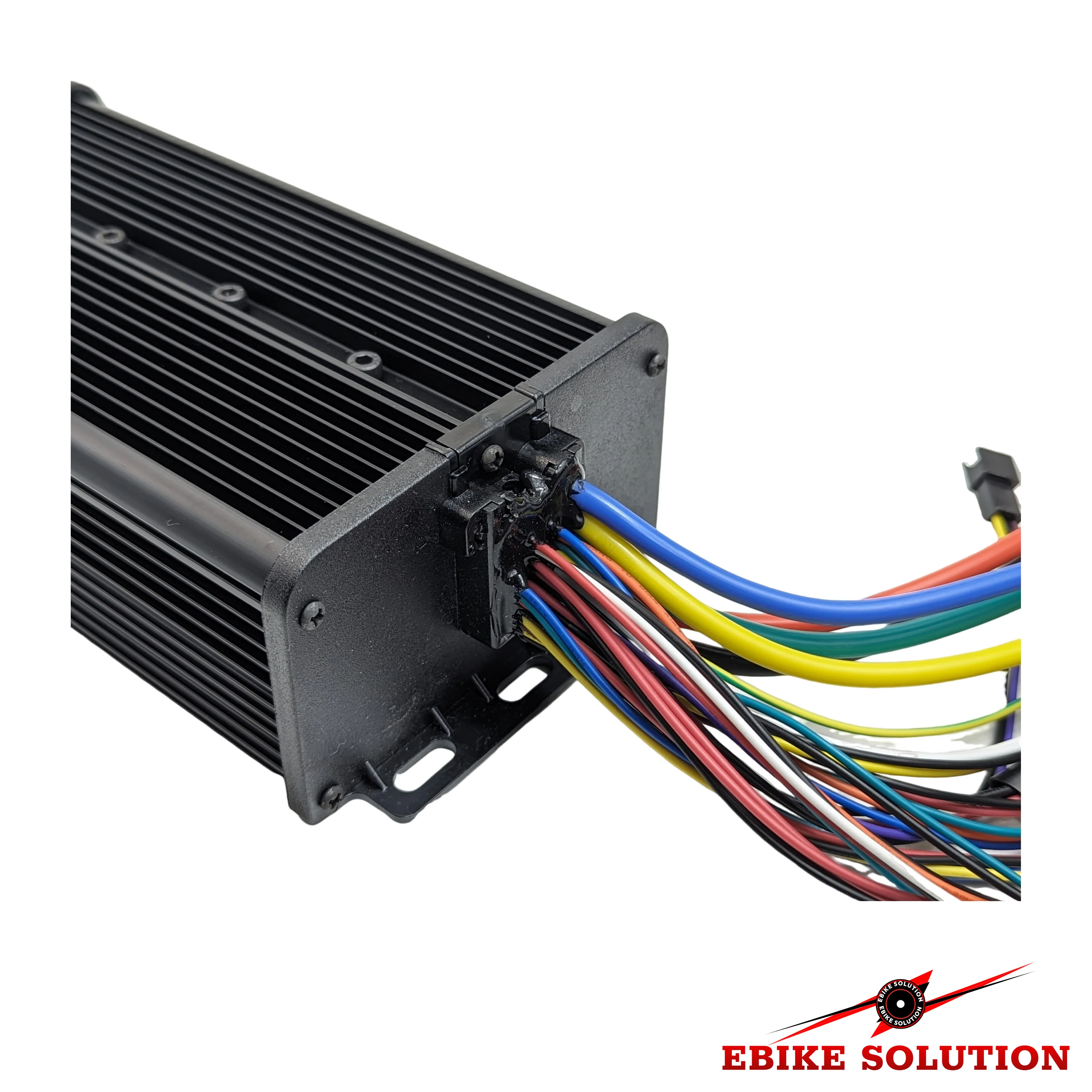

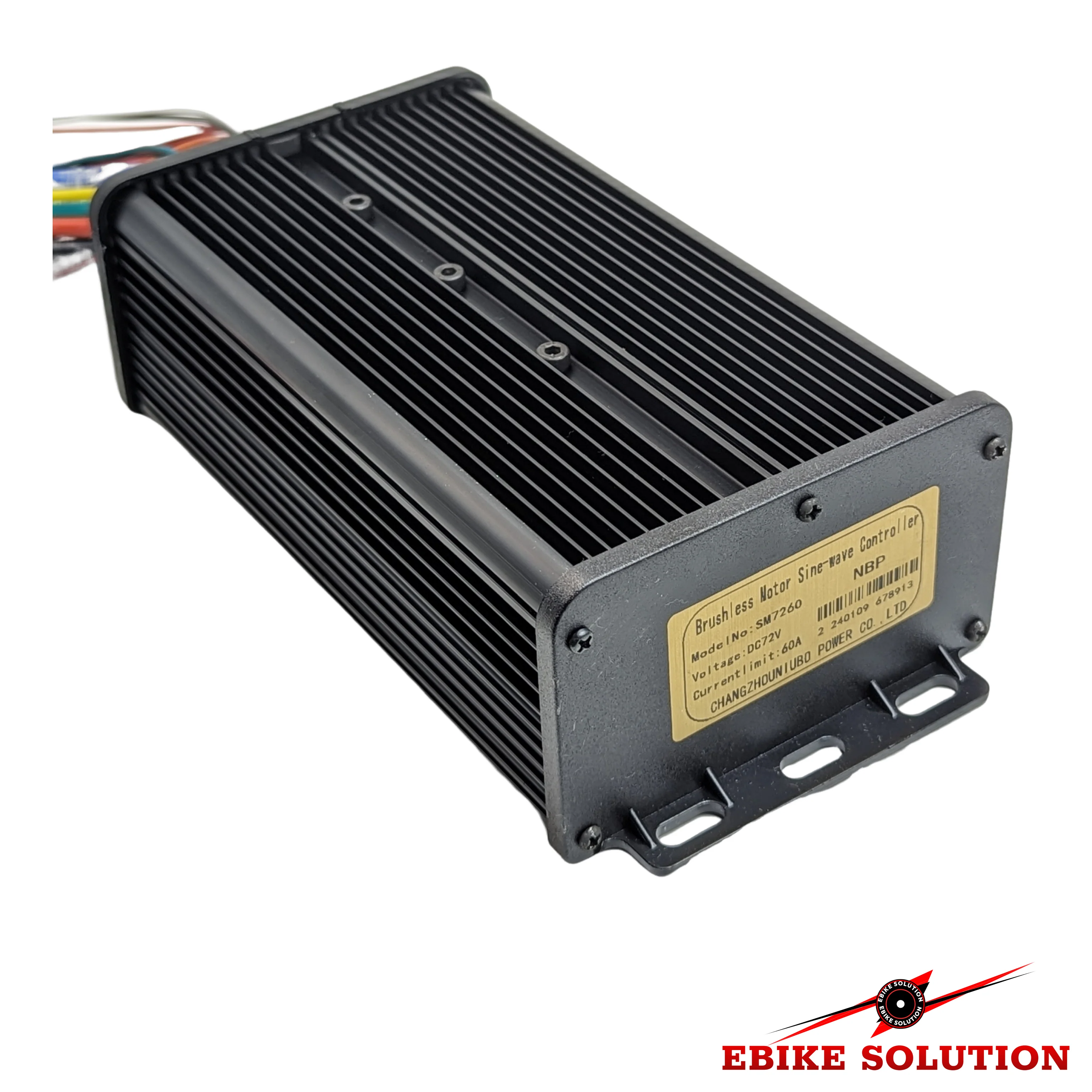

Electric Bicycle Controller Model 72V 60A Sine Wave Dual Mode Ebike

Ebike Brushless Motor Controller MQ 48-72V 60A Sine Wave Dual Mode

Features:

• Speed Limit ( will limit the speed to around 15.5 mph)
• Fast self-learning mode: quickly match all kinds of motors

• Smart Controller (can be used with any batteries)
  from 48v(13s) Less Speed
  up to 72V (20s) More Speed

Specifications:

• Protocol: No.2 (LCD: SW900 / UKC1(omd) / M8 / S866 / EN06)
• Controller Type:
• Sine Wave (default)

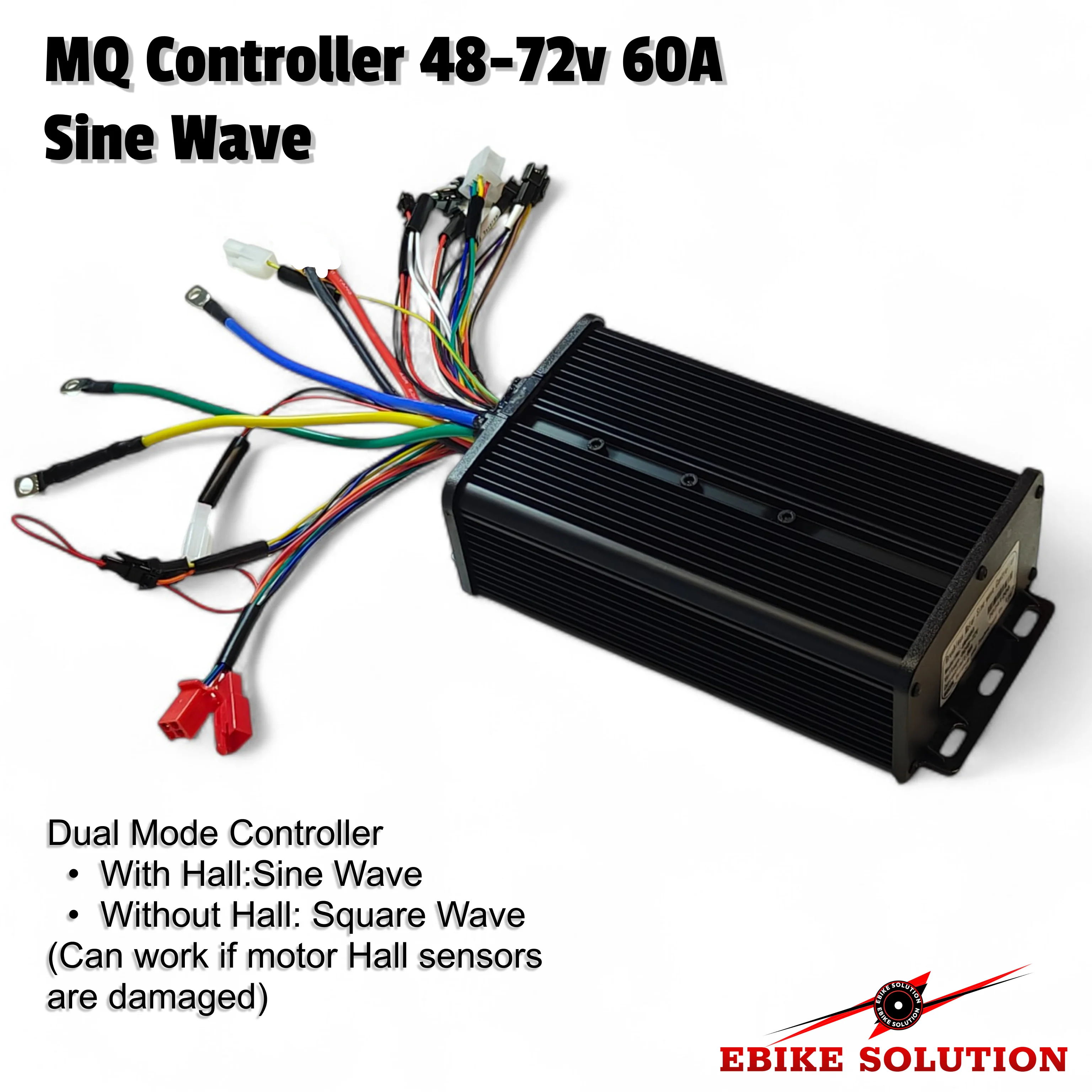

• Dual Mode (disconnect the hall plug and will work in sensorless mode, handy when hall sensors are broken or motor cable damaged)
• Rated Voltage: DC 48-72V
• Power Output:
• 48V- 2800W
• 52V-3100W
• 60V-3600W
• 72V-4300W


• Motor Compatibility: 3000W
• Maximum Current: 60±1A
• Rated Current: 30A
• MOSFETs: 18 high-efficiency MOSFETs

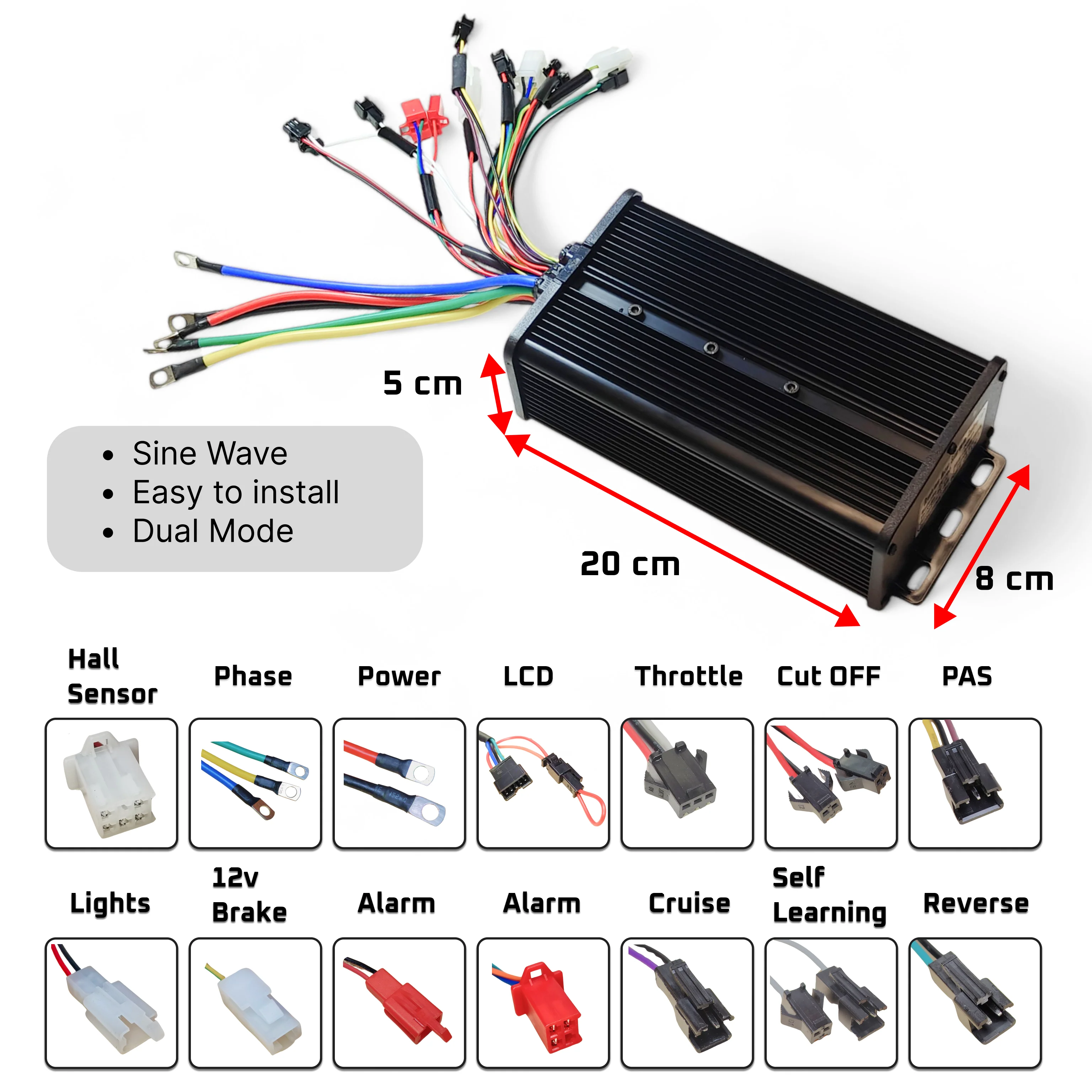

• Size:22x11x5cm
• Weight: 1000g approx

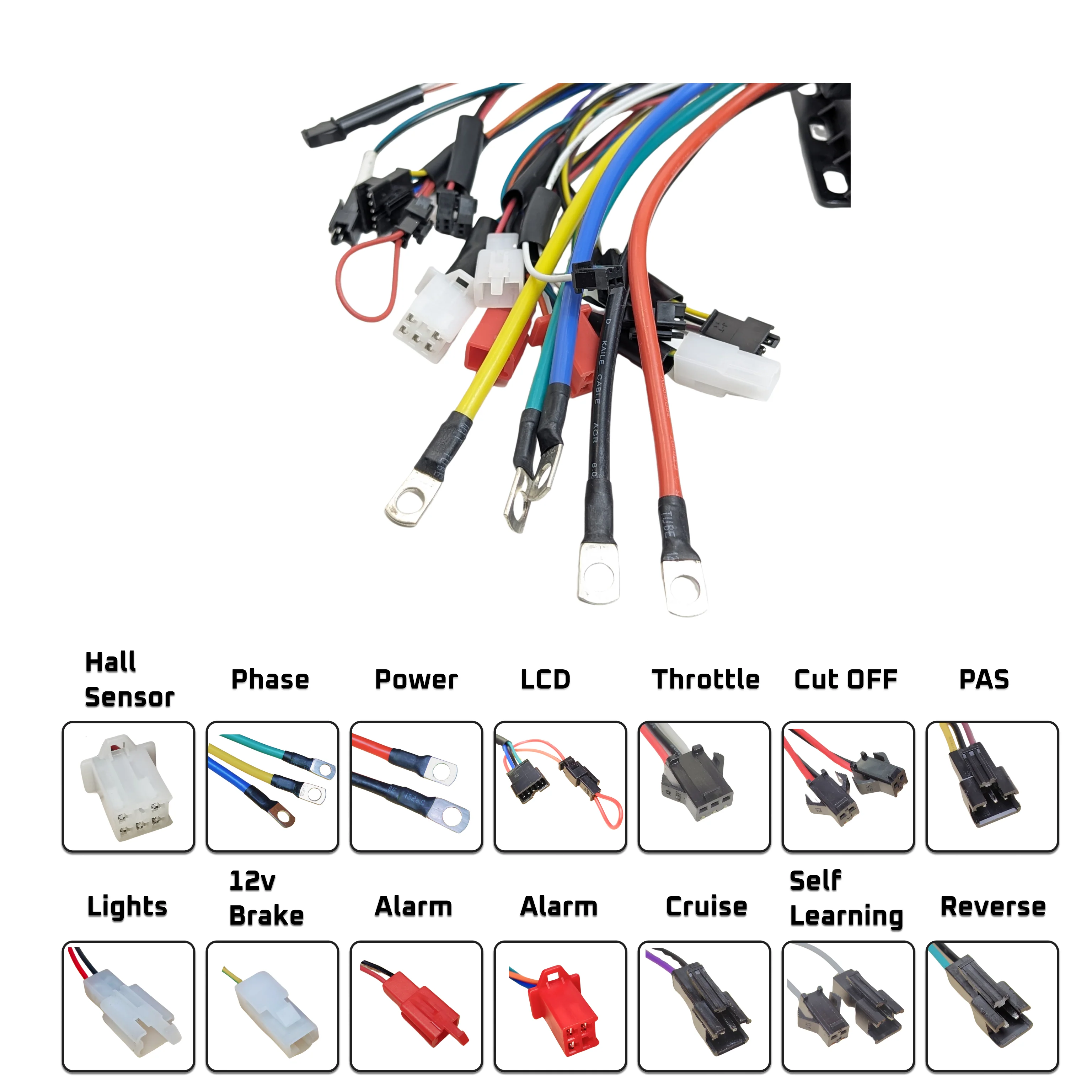

• Cable Length: 13–18 cm
• Battery Plug:  Rings
• Motor Phase Plug: Rings

Package Included

• 1 X MQ 60A Sine Wave Controller
