Bundle Colour SW900 LCD 48v/72v 45a Controller YF 1500-2500W Ebike Control Panel
Bundle Colour SW900 LCD 48v/72v 45a Controller YF 1500-2500W Ebike Control Panel
Features:
- Speed Limit ( will limit the speed to around 15.5 mph)
-
Smart Controller (can be used with any batteries/voltage adjusts based on the battery and can't be changed)
from 48v(13s) Less Speed
up to 72V (20s) More Speed
Specifications:
- Protocol: No.2 (LCD: SW900 / UKC1(omd) / M8 / S866 / EN06)
- Controller Type:
- Square Wave
- Rated Voltage: DC 48-72V
- Power Output:
- 48V- 2160W
- 52V-2340W
- 60V-2700W
-
72V-3240W
- Motor Compatibility: 2000W
- Maximum Current: 45±1A
- Rated Current: 22A
- MOSFETs: 18 high-efficiency MOSFETs
- Size:20x11x6cm
- Weight:950g approx
- Cable Length: 13–18 cm
- Battery Plug: XT60
- Motor Phase Plug: Rings

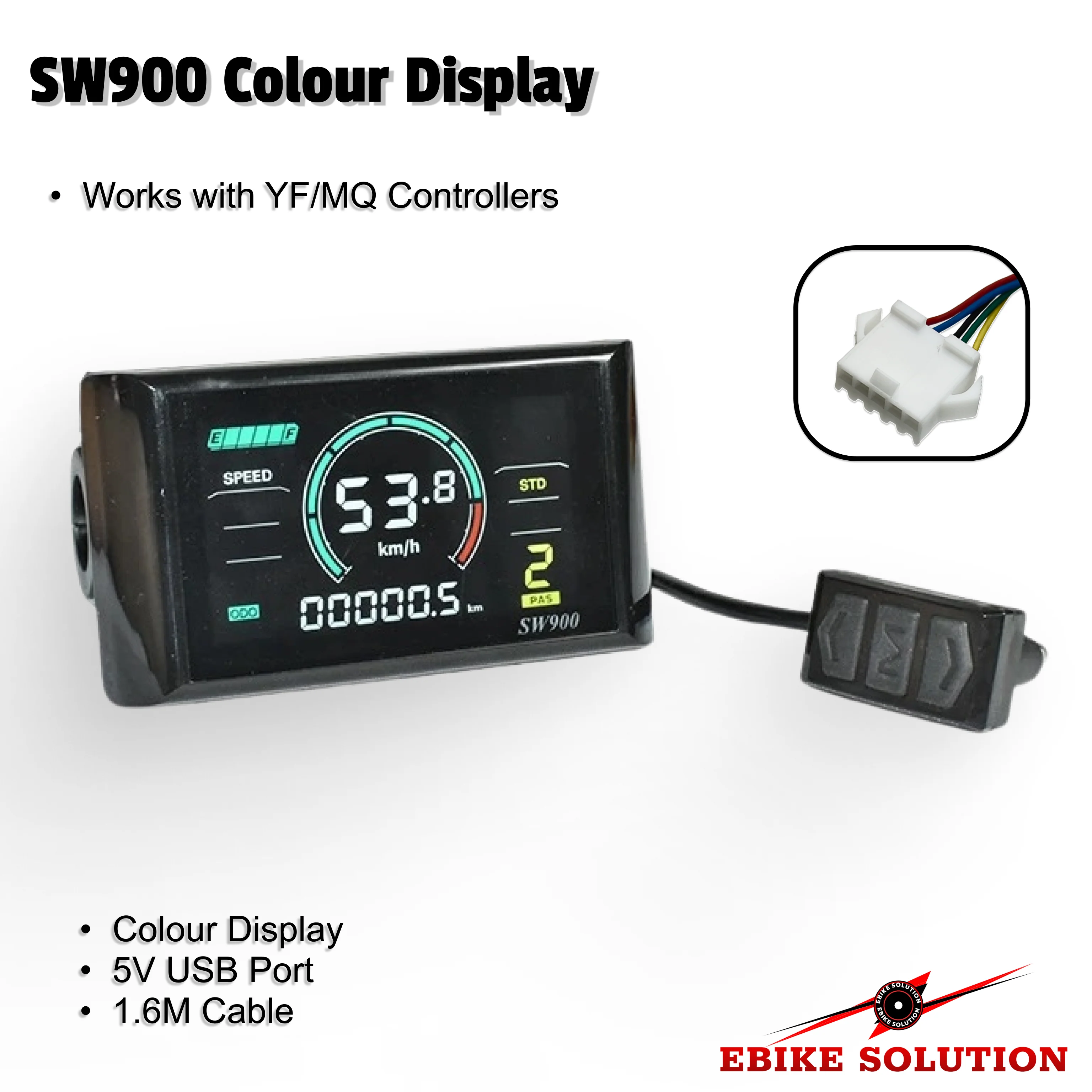

SW900 Specifications:
- LCD display can clearly show the state and data, such as riding speed, time, temperature.
- 5V USB Port For charging phone and lights
- Backlight enables you to see screen clearly in dim environment.
- It is suitable for electric bicycles controllers.
- Compatible with 24V,36V,48V,52V,60V,72V.
- It’s also compatible with many types of BRUSHLESS controllers.
- This is a YF/MQ Controllers on protocol No2, NOT FOR KT controllers
Package Include:
- 1 X YF 45A Sine Wave Controller
- SW900 Display
