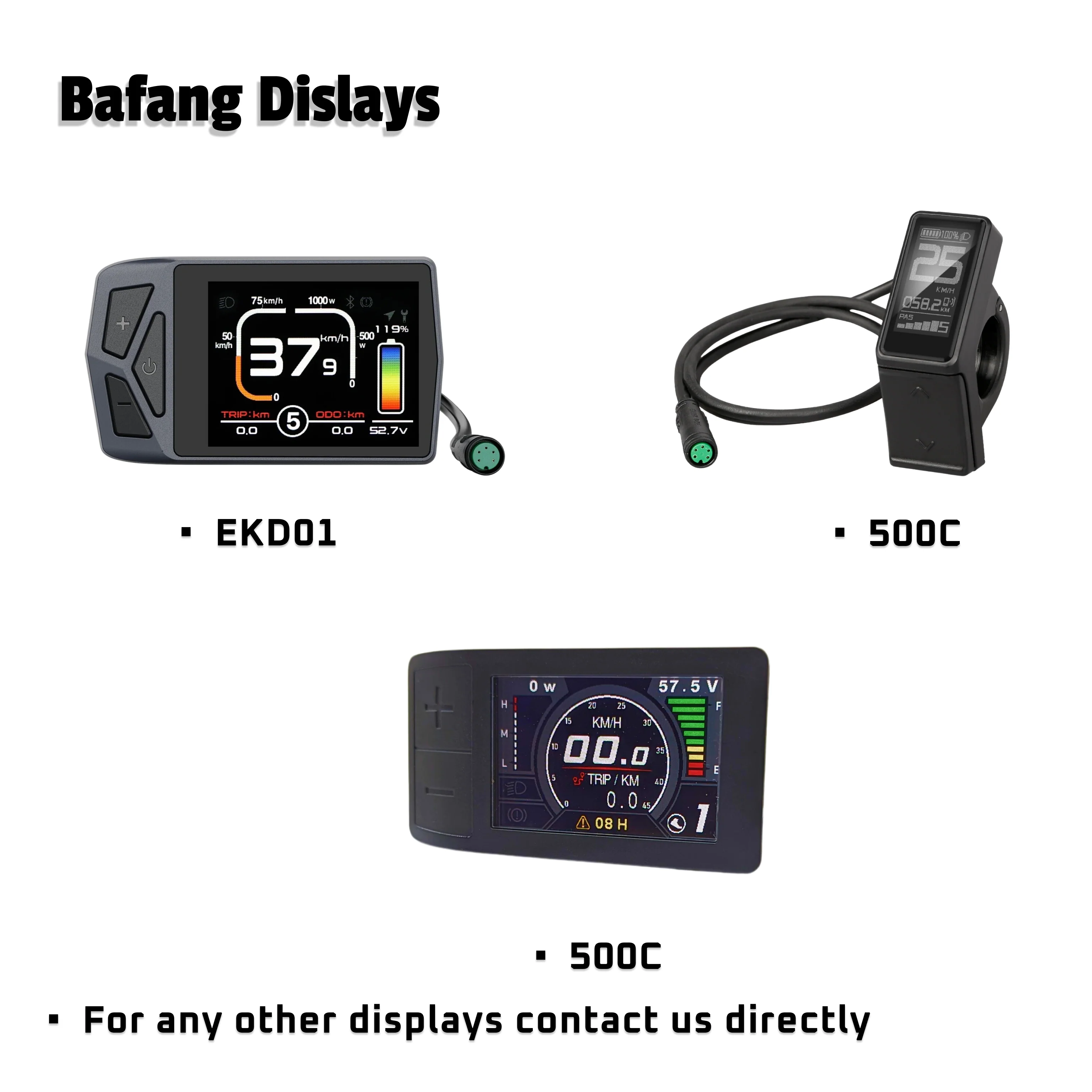

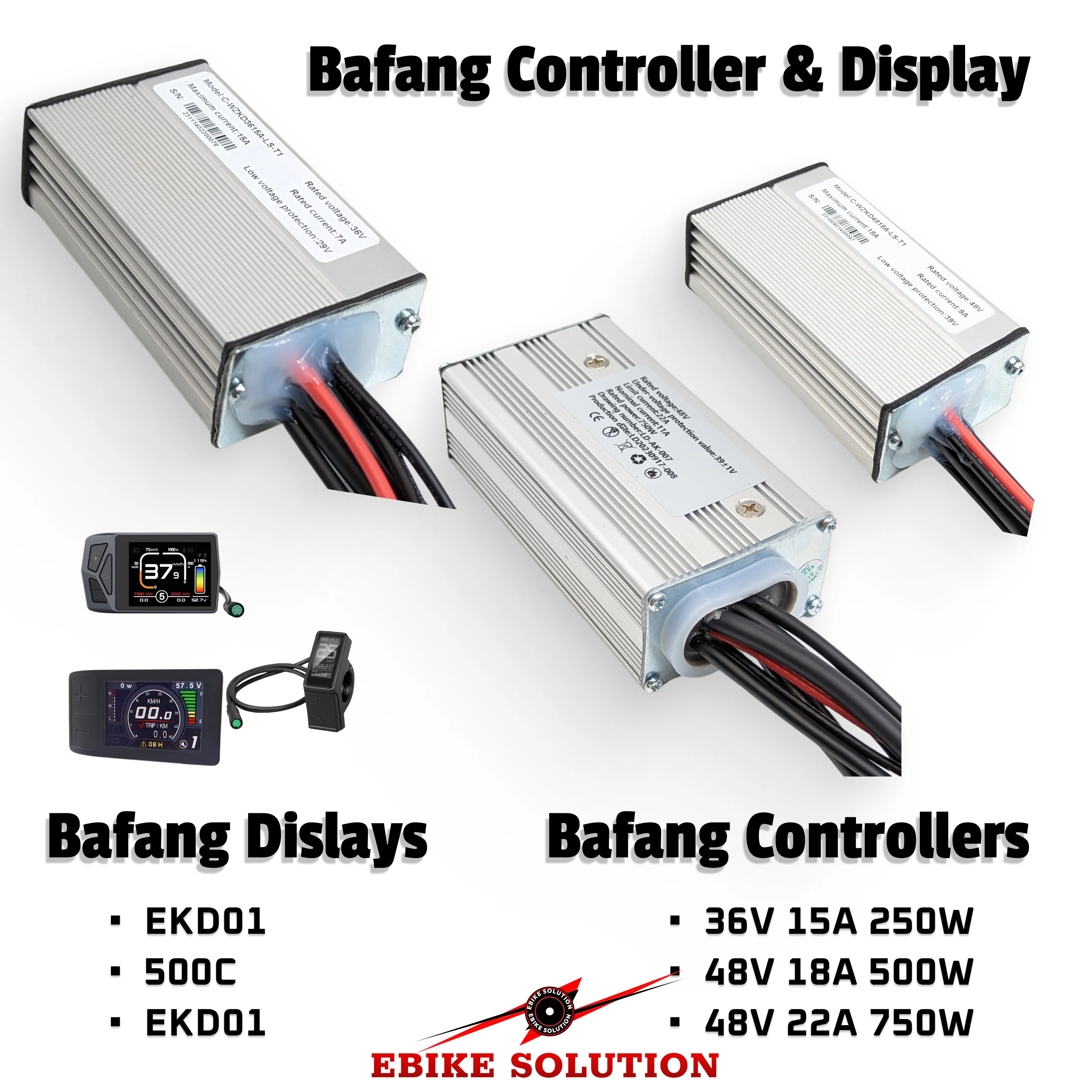

Bafang Brushless Motor Controller Display 500C EKD01 36/48V 15-25A 250-750W

Bafang Brushless Motor Controller Display 500C EKD01 36/48V 15-25A 250-750W

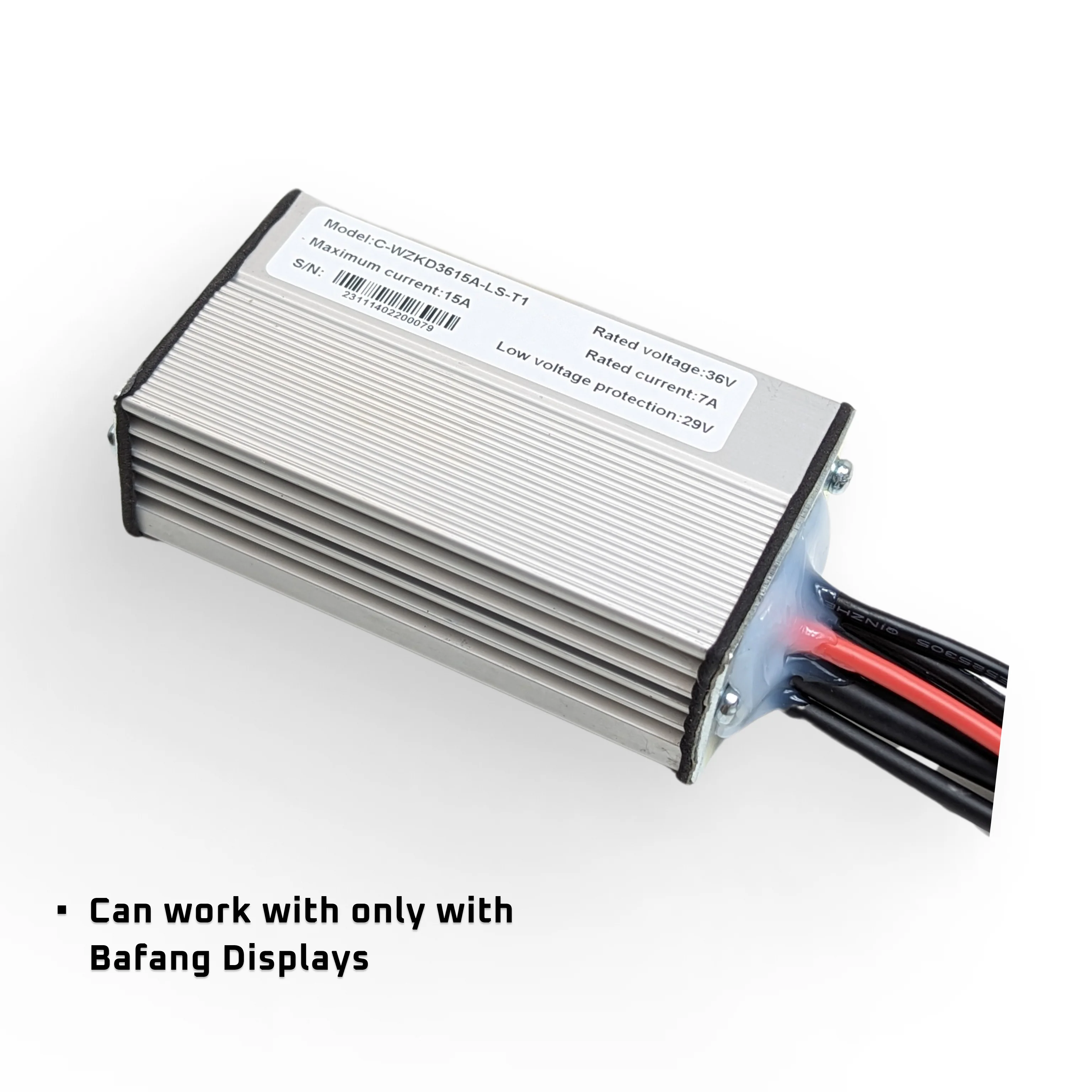

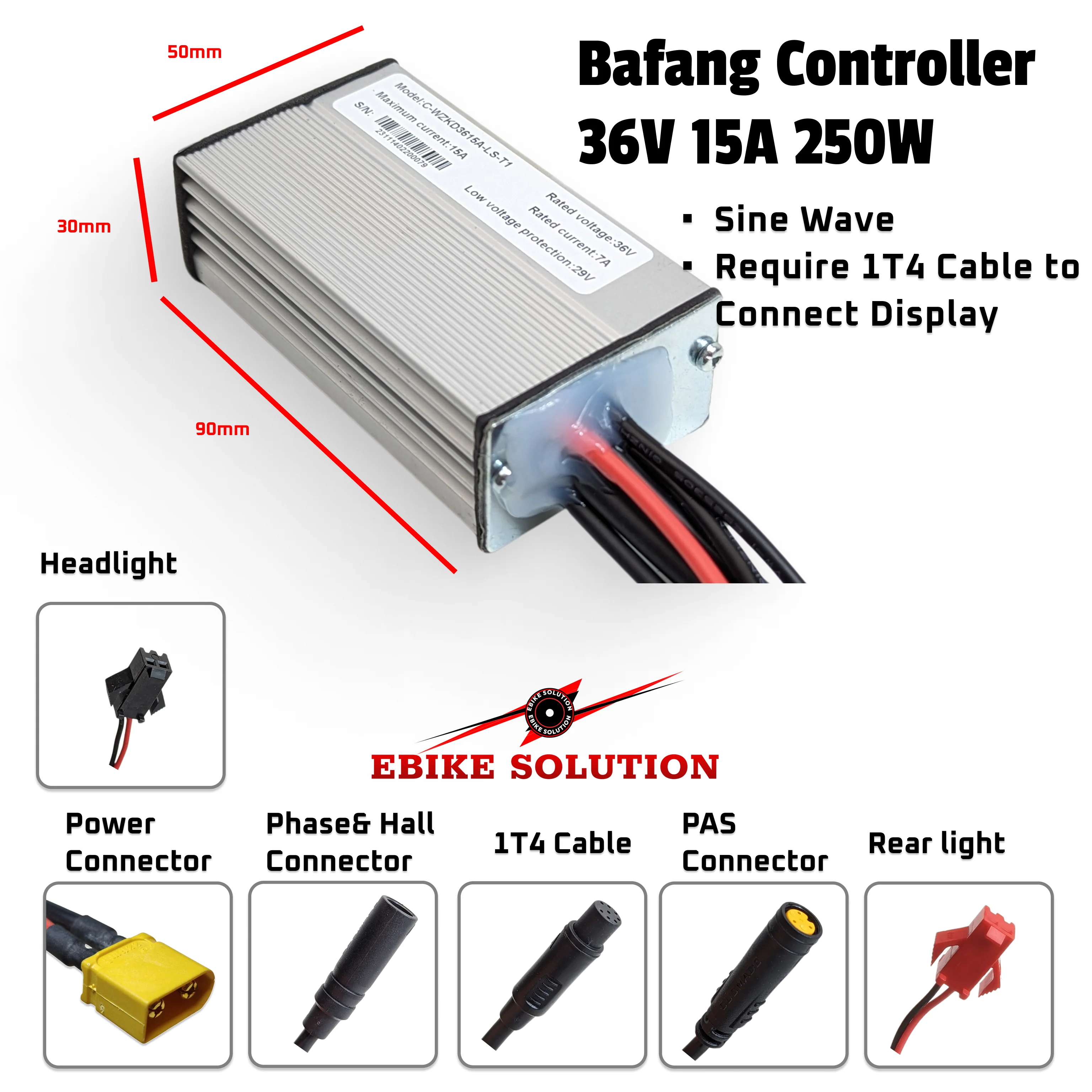

Specification:

• Rated Voltage: 36V
• Under voltage protection: 29V
• Limit current: 15A
• Nominal current: 9A
• Rated power: 150W
• Sine Wave controller
• 9 Pin Phase & Hall Plug
• Require 1T4 cable to connect display, throttle and brake sensors.
• Rear & Front light connectors
• Waterproof controller
• XT60 Battery Connector

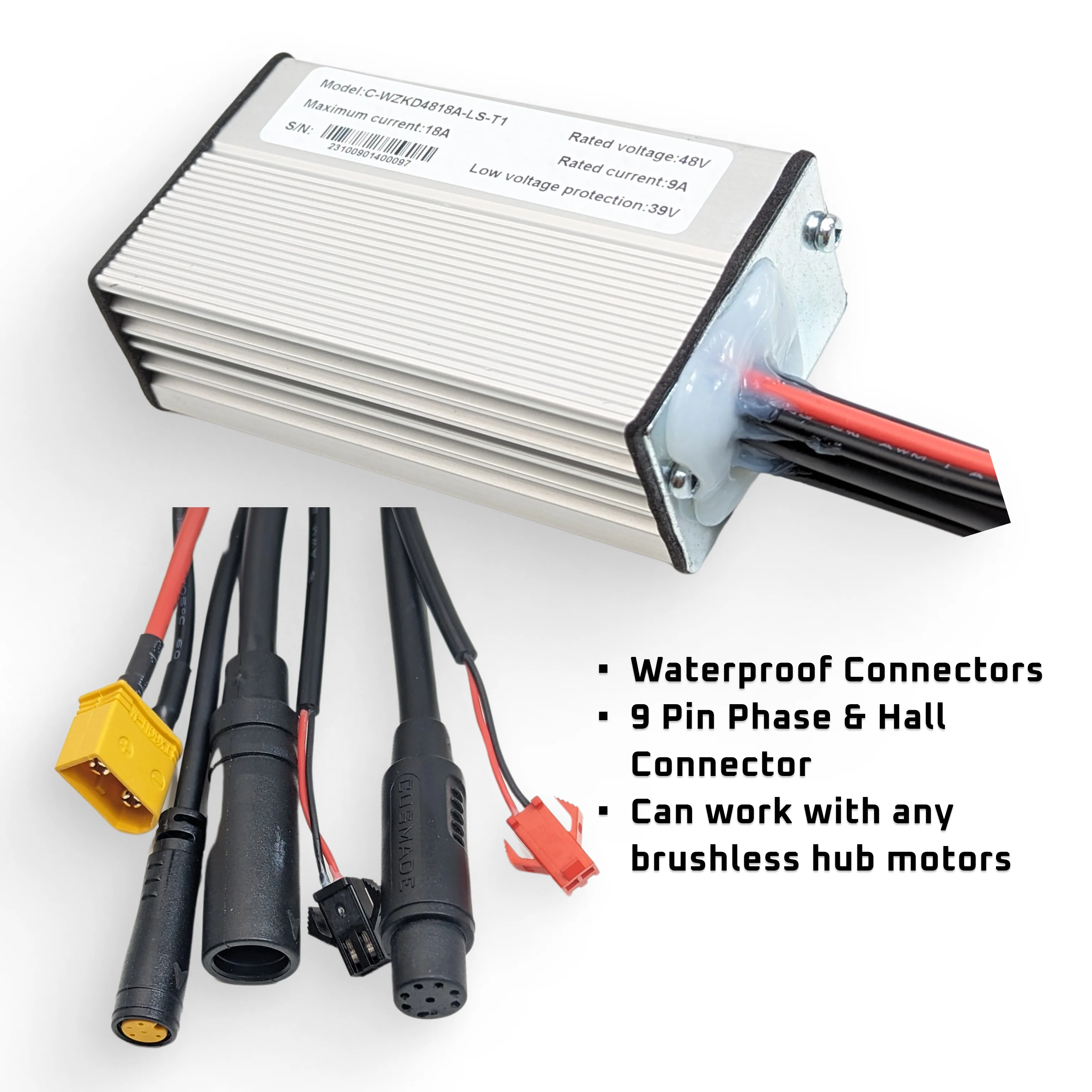

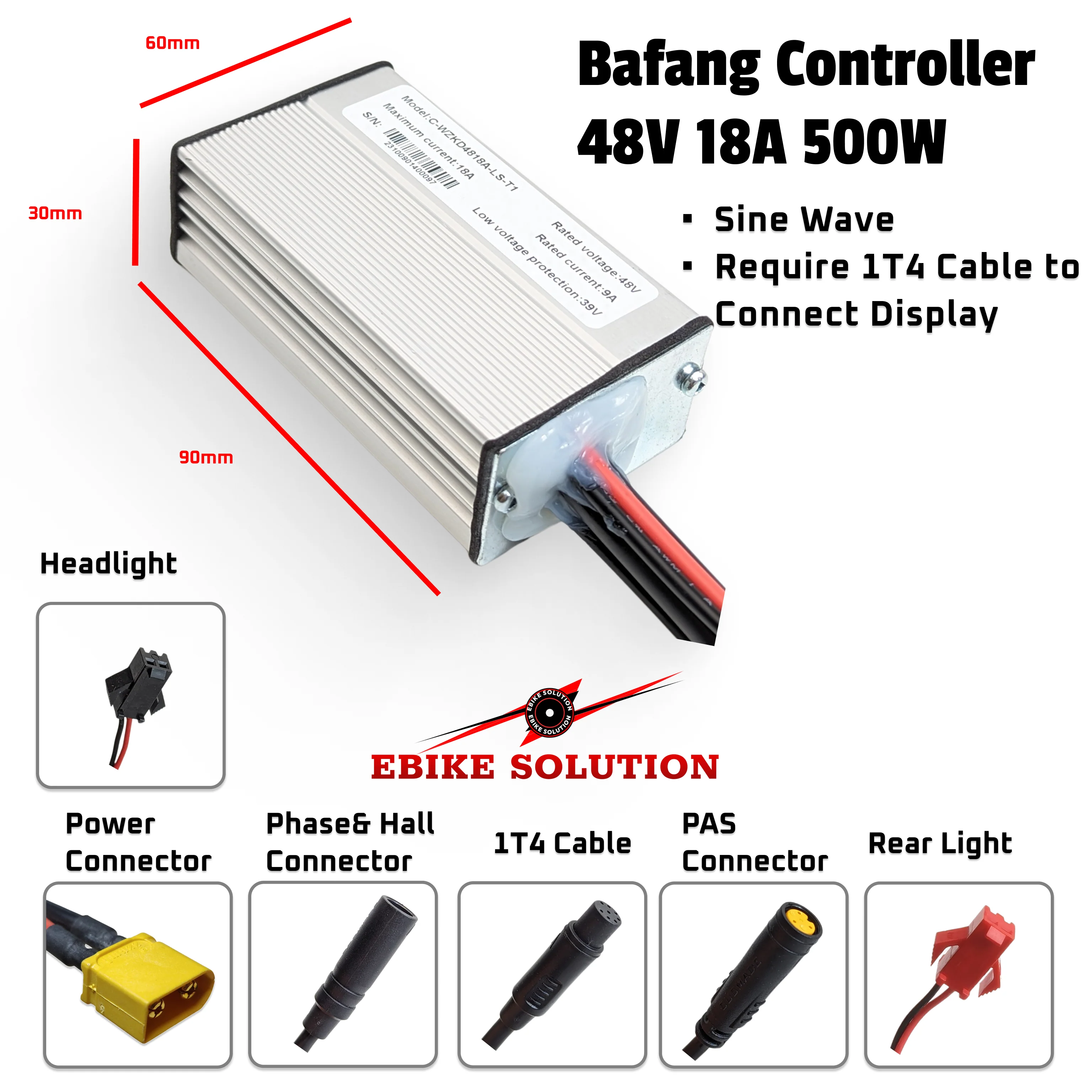

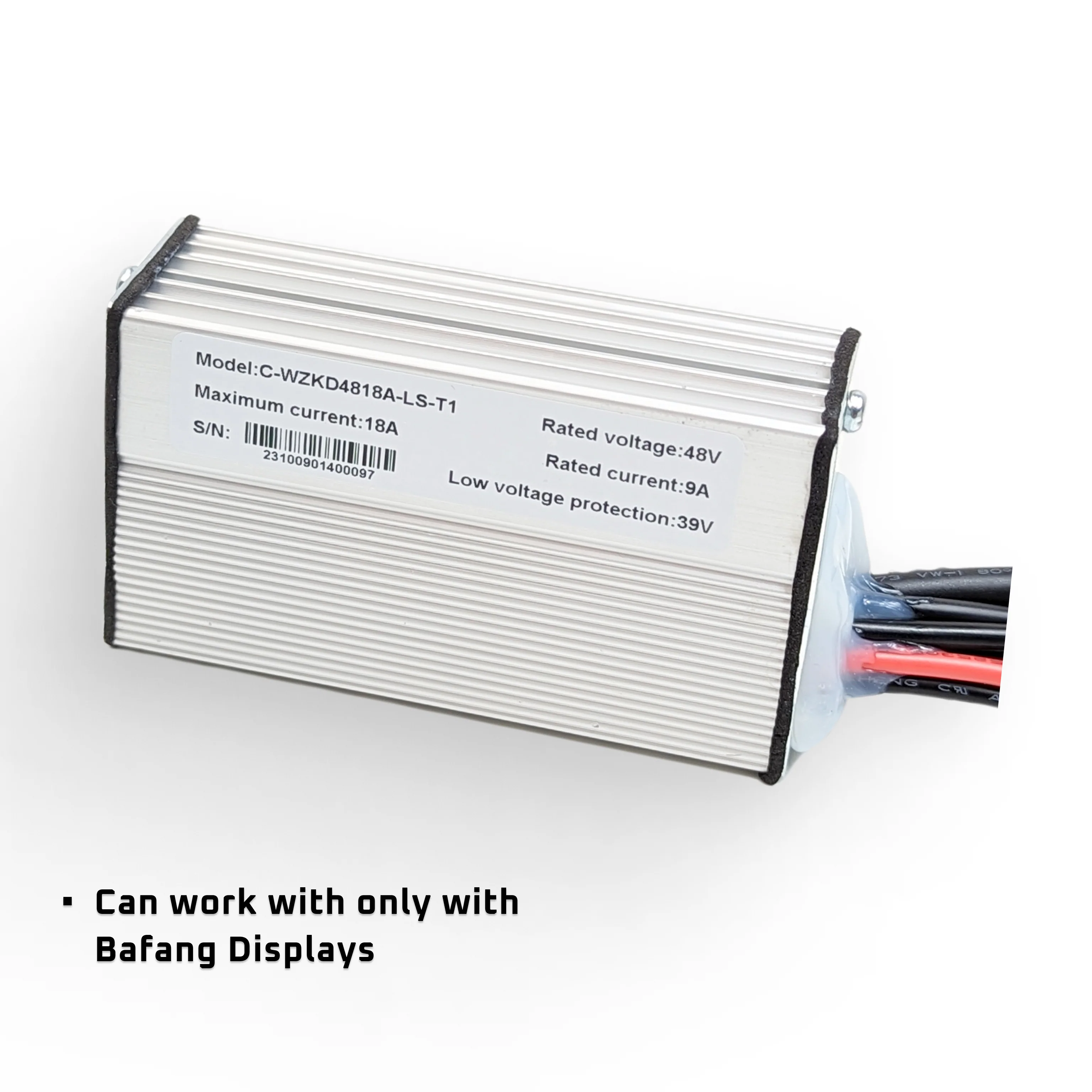

Bafang Brushless Controller 48V 17A 500W Waterproof 9 Pin Motor Connector

Specification:

•     Rated Voltage: 48V
•     Under voltage protection: 39V
•     Limit current: 17A
•     Nominal current: 9A
•     Rated power: 500 W
•     Sine Wave controller
•     9 Pin Phase & Hall Plug
•     Require 1T4 cable to connect display, throttle and brake sensors.
•     Rear & Front light connectors
•     Waterproof controller
•     XT60 Battery Connector

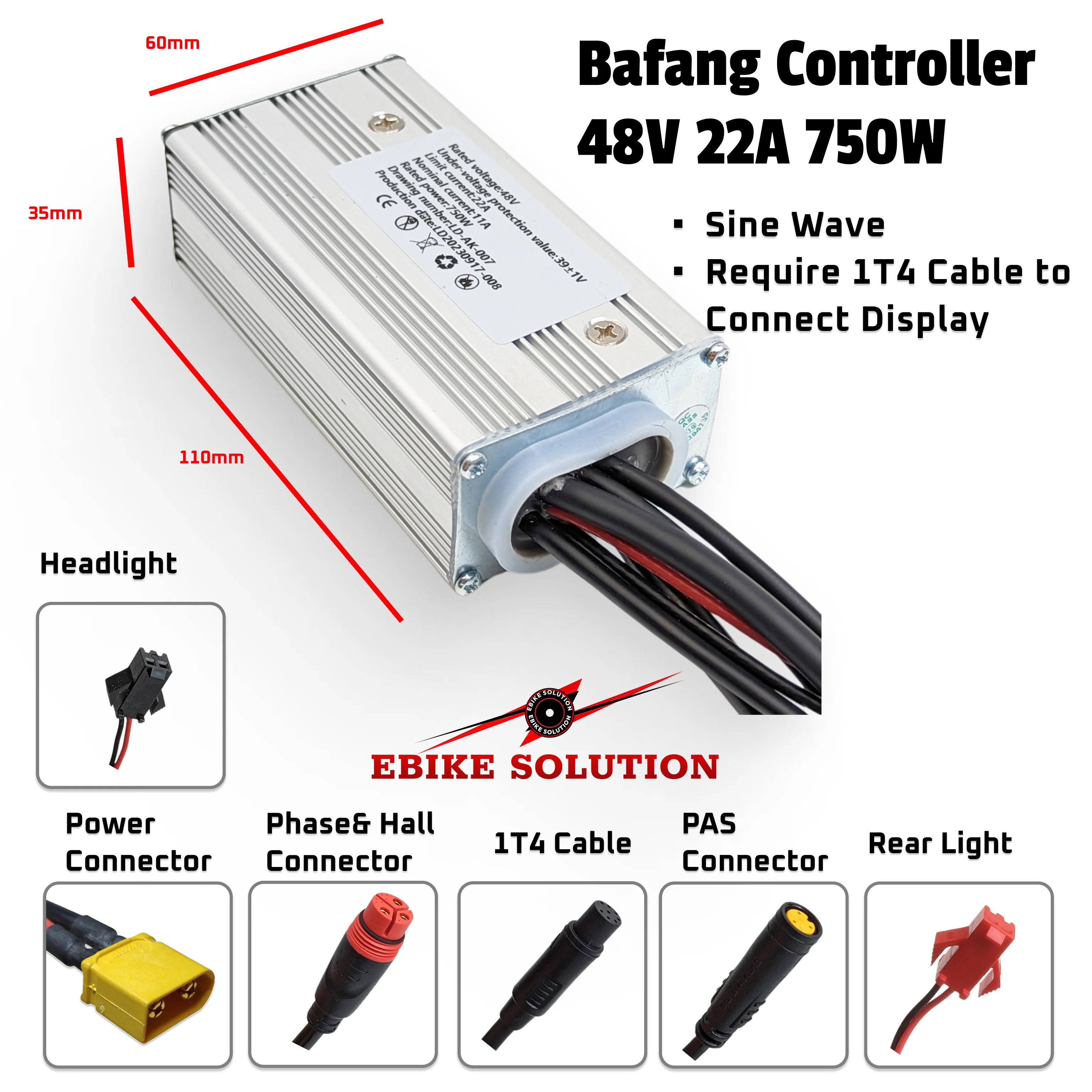

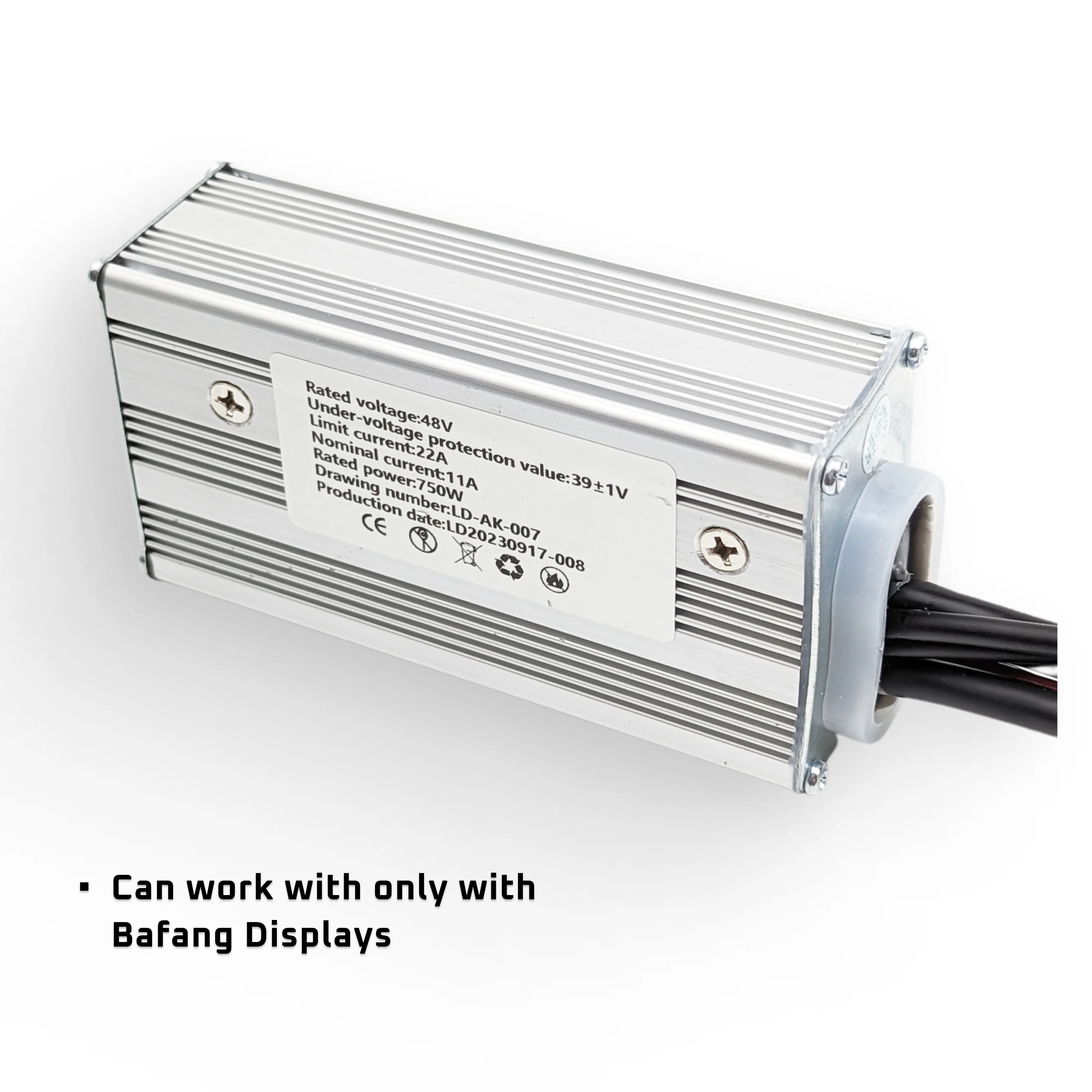

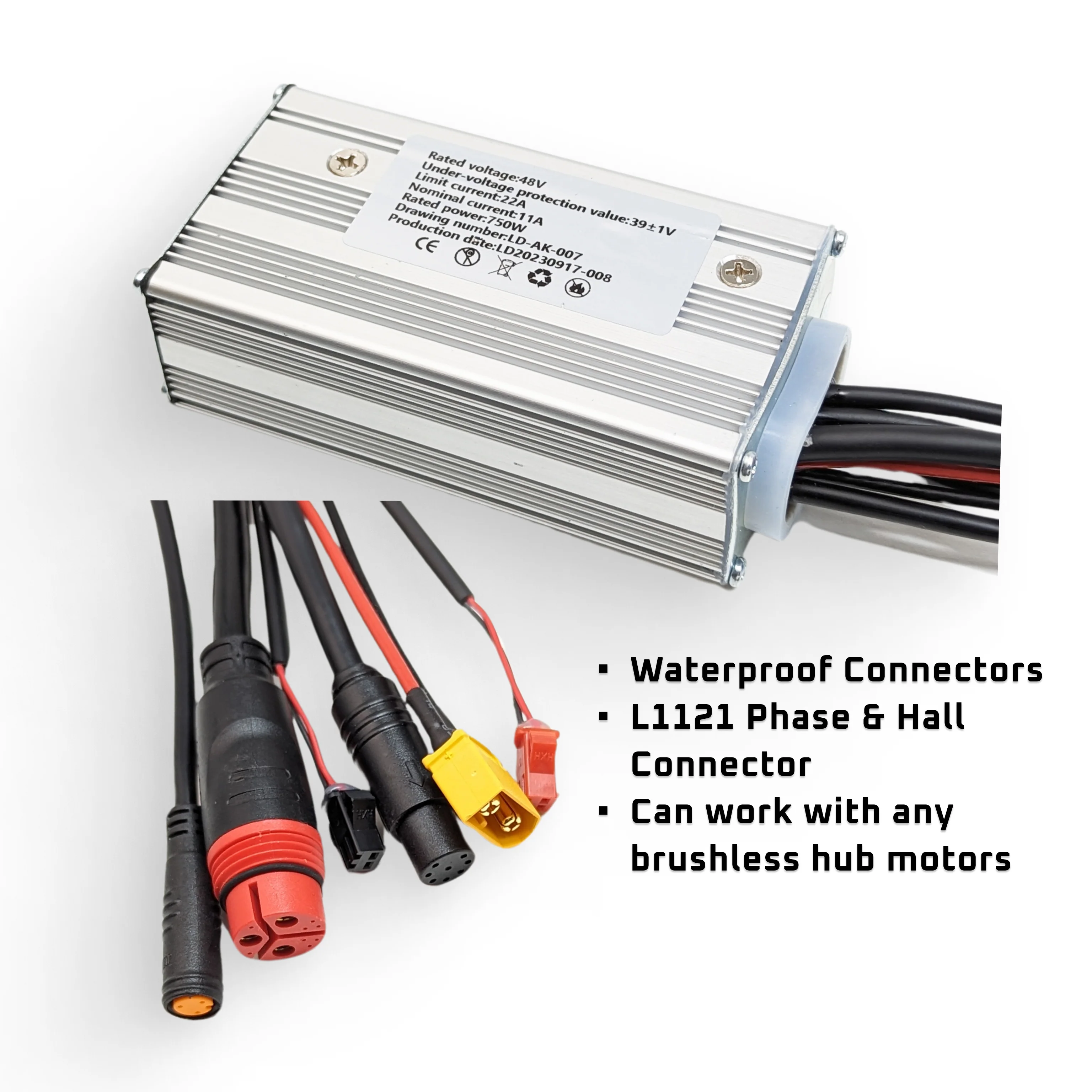

Bafang Brushless Controller 48V 22A 750W Waterproof L1211 Phase Connector

Specification:

• Rated Voltage: 48V
• Under voltage protection: 39V
• Limit current: 22A
• Nominal current: 11A
• Rated power: 750W
• Sine Wave controller
• L1121 Phase & Hall Plug
• Require 1T4 cable to connect display, throttle and brake sensors.
• Rear & Front light connectors
• Waterproof controller
• XT60 Battery Connector

Package Included

• 1 X Bafang Brushless Controller + Display (according to chosen options)
