MXUS 36V 48V 250W 350W 500W High Speed Brushless Gear Hub Motor

Motor Specifications

Model	Position	Voltage (V)	Power (W)	Weight (Kg)	Reduction Ratio	Wheel Diameter (Inch)	Speed (RPM)	Magnet Poles (2P)	Fork Size (mm)	Freewheel	Brake Type	Efficiency (%)	IP Grade

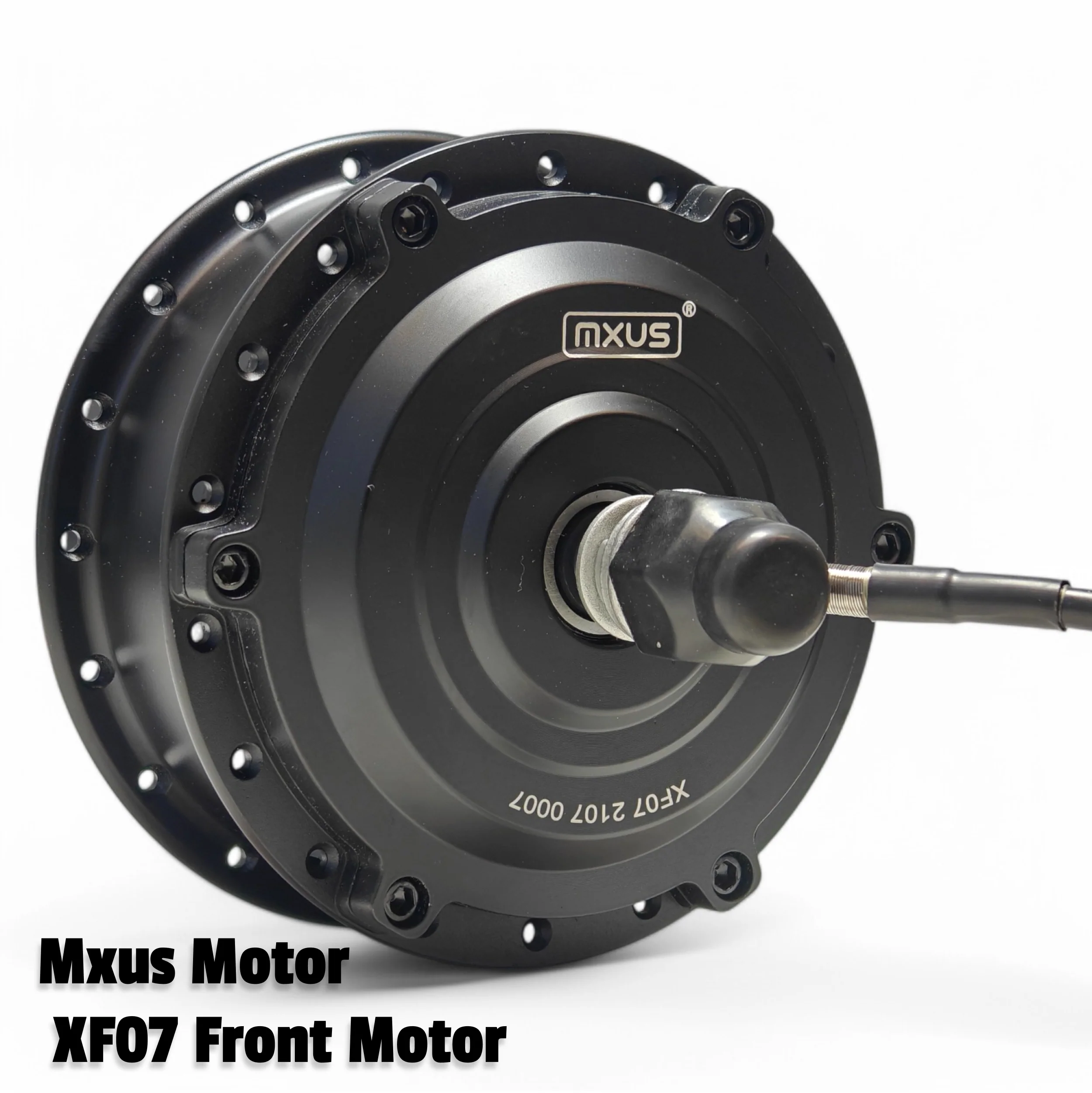

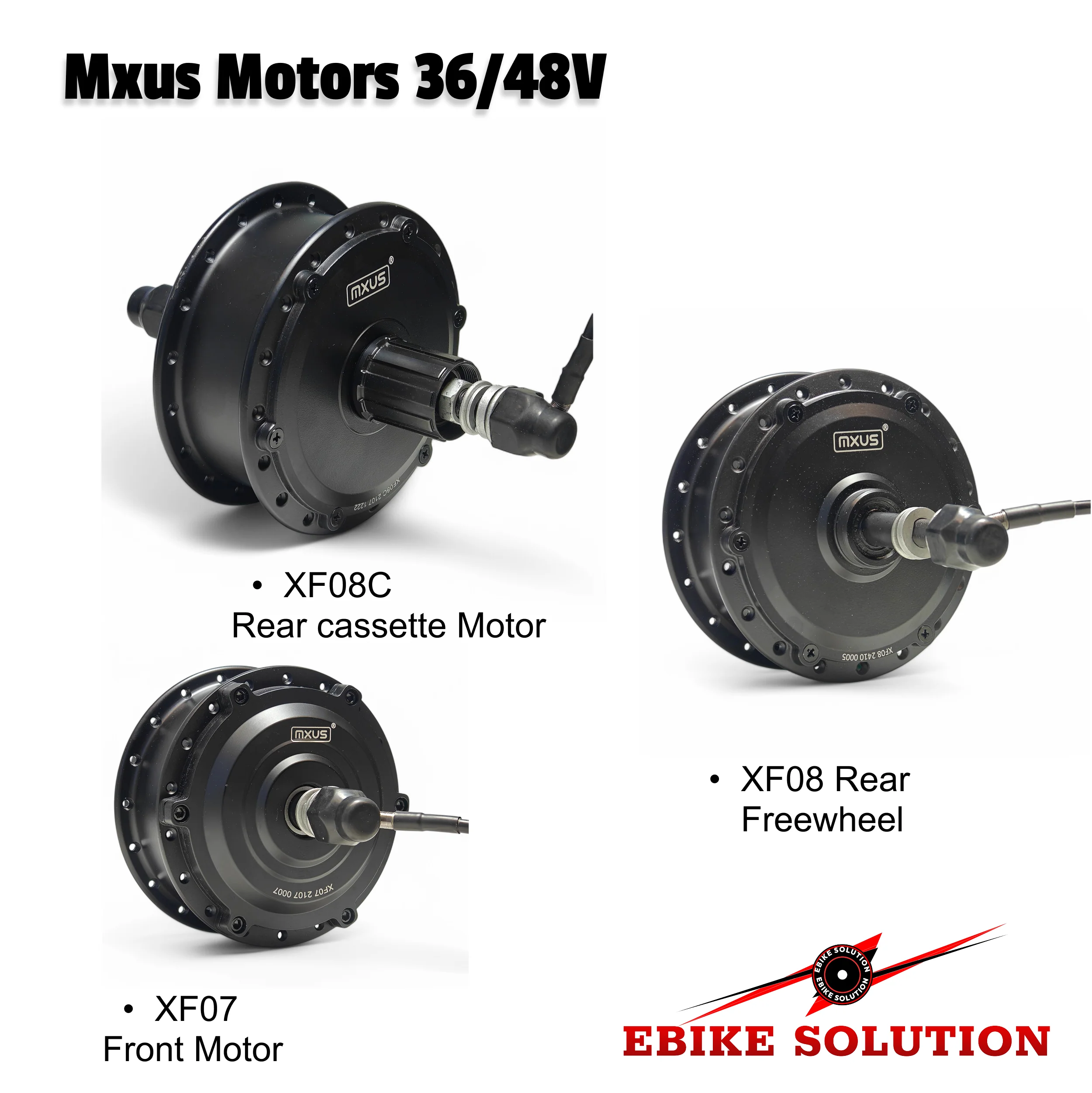

XF07	Front	36	250	2.8	1:4.4	20-28	270	10	100	-	V/Disk brake	≥ 78%	IP54

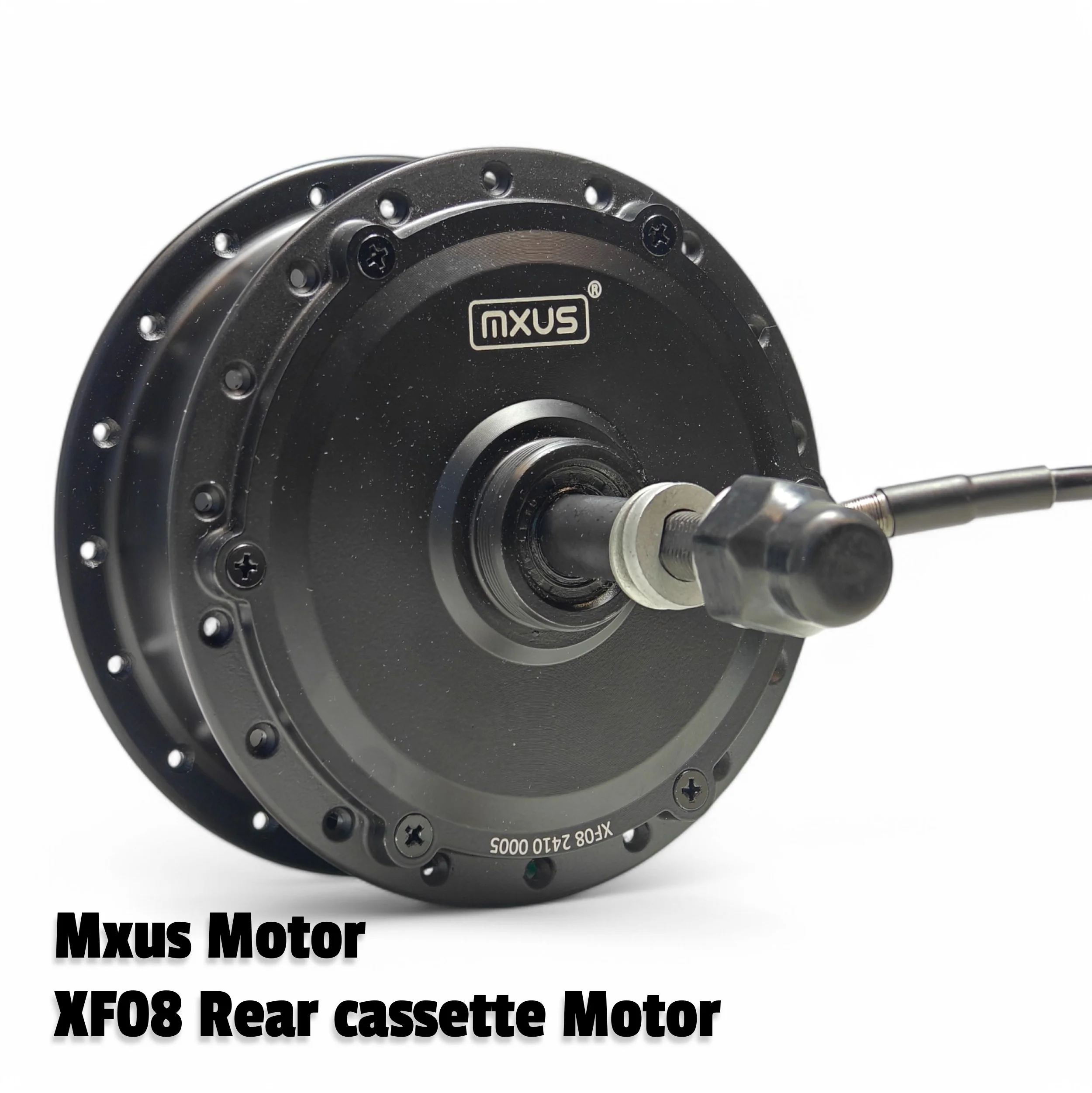

XF08	Rear	36	250	2.8	1:4.4	20-28	270	10	136	6s-9s	V/Disk brake	≥ 78%	IP54

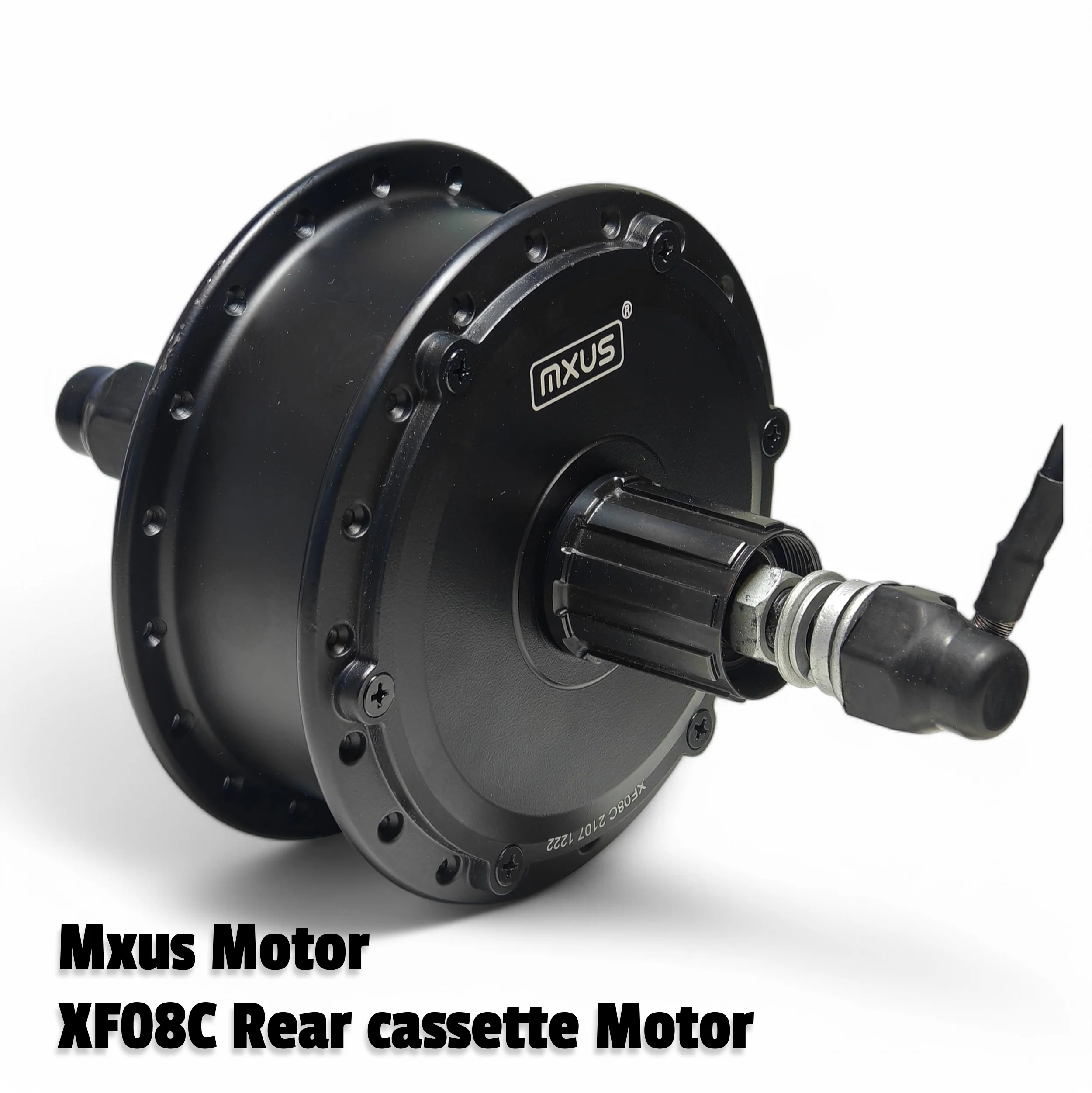

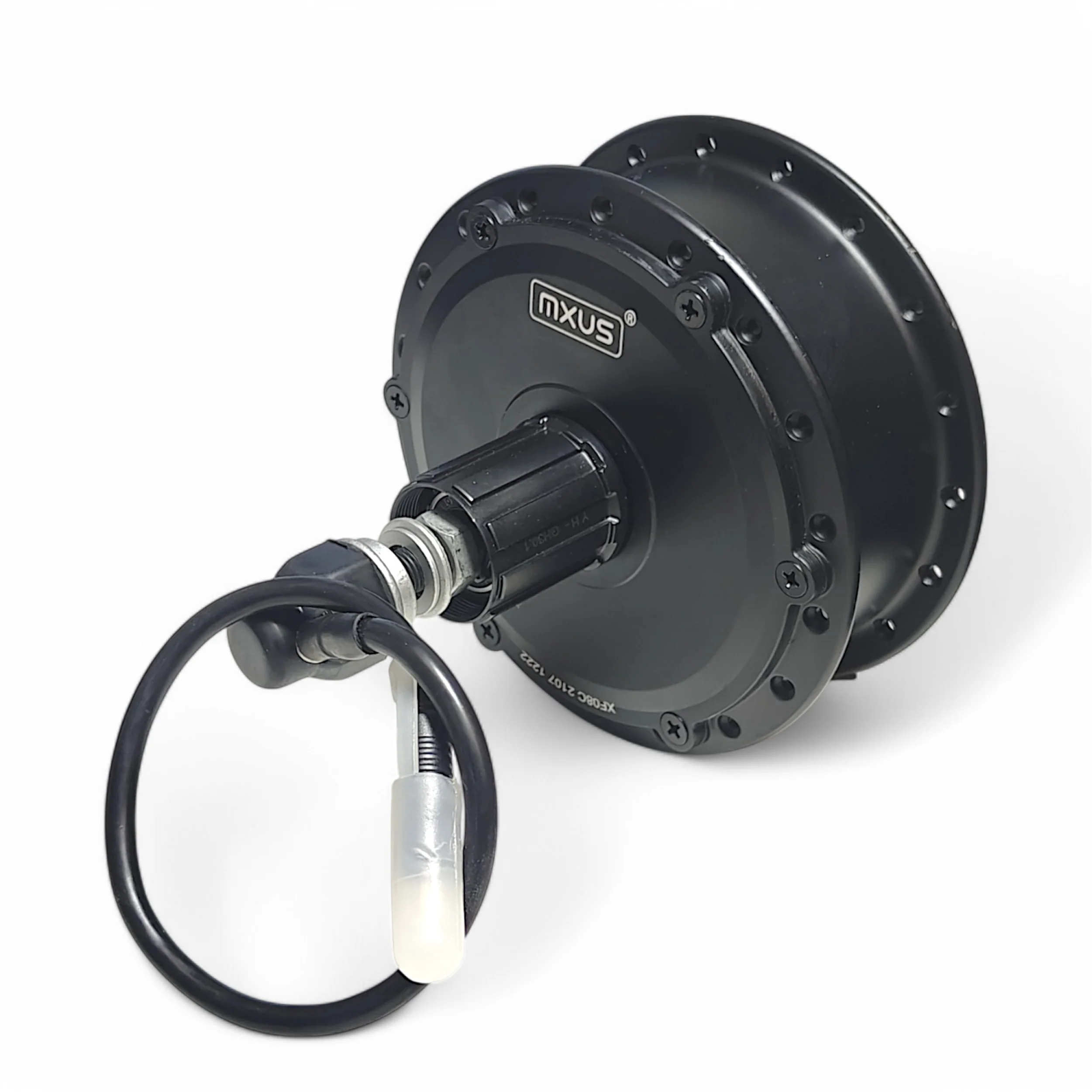

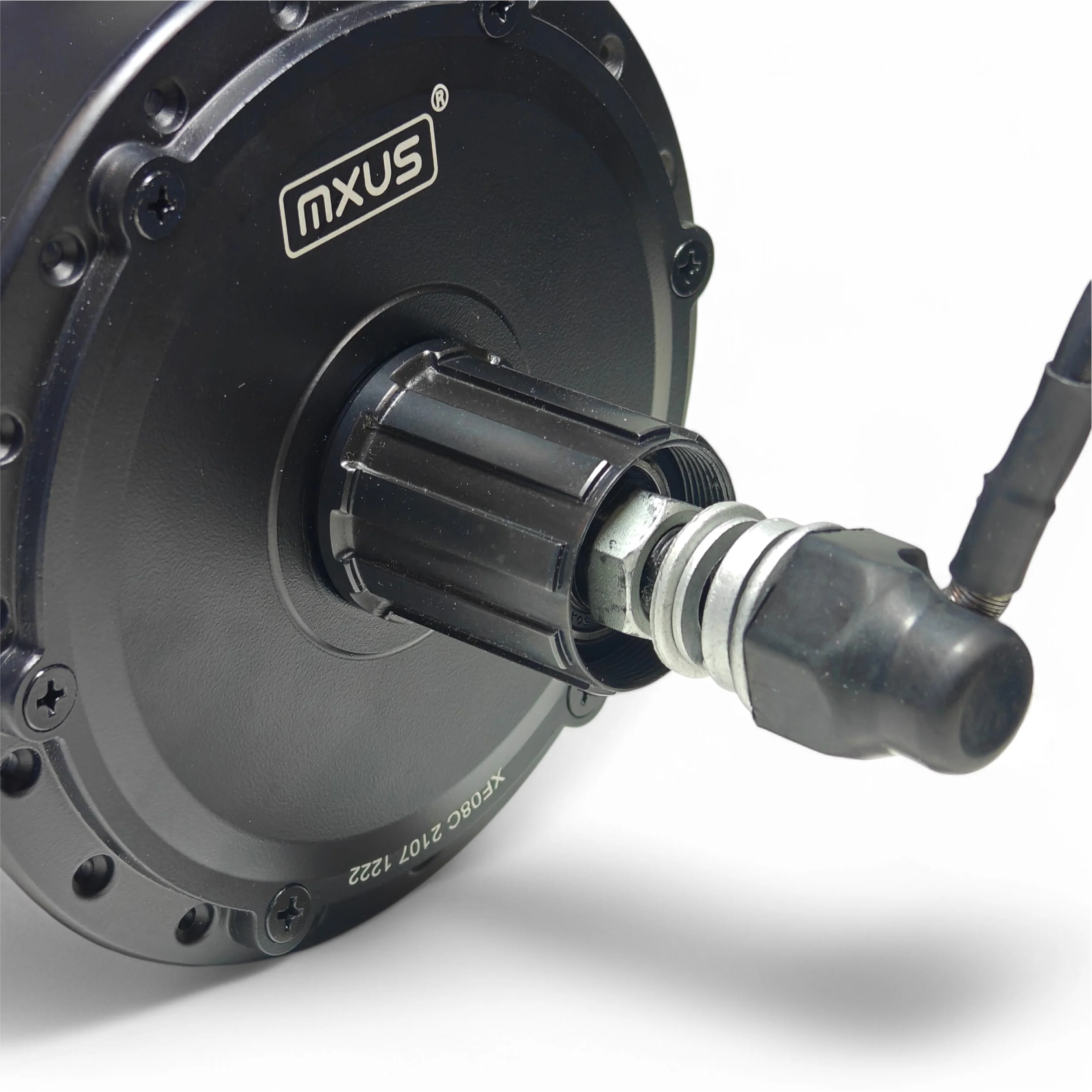

XF08C	Rear	36	250	3	1:4.4	20-28	270	10	144	8s-10s cassette	V/Disk brake	≥ 78%	IP54
XF15F	Front	48	500	3.7	1:5	20-28	380	10	100	-	V/Disk brake	≥ 78%	IP54
XF15R	Rear	48/36	500/350	3.7	1:5	20-28	380	10	139	6s-9s	V/Disk brake	≥ 78%	IP54
XF15C	Rear	48/36	500/350	3.9	1:5	20-28	380	10	145	8s-10s cassette	V/Disk brake	≥ 78%	IP54

Packing List

• 1 pcs MXUS Motor

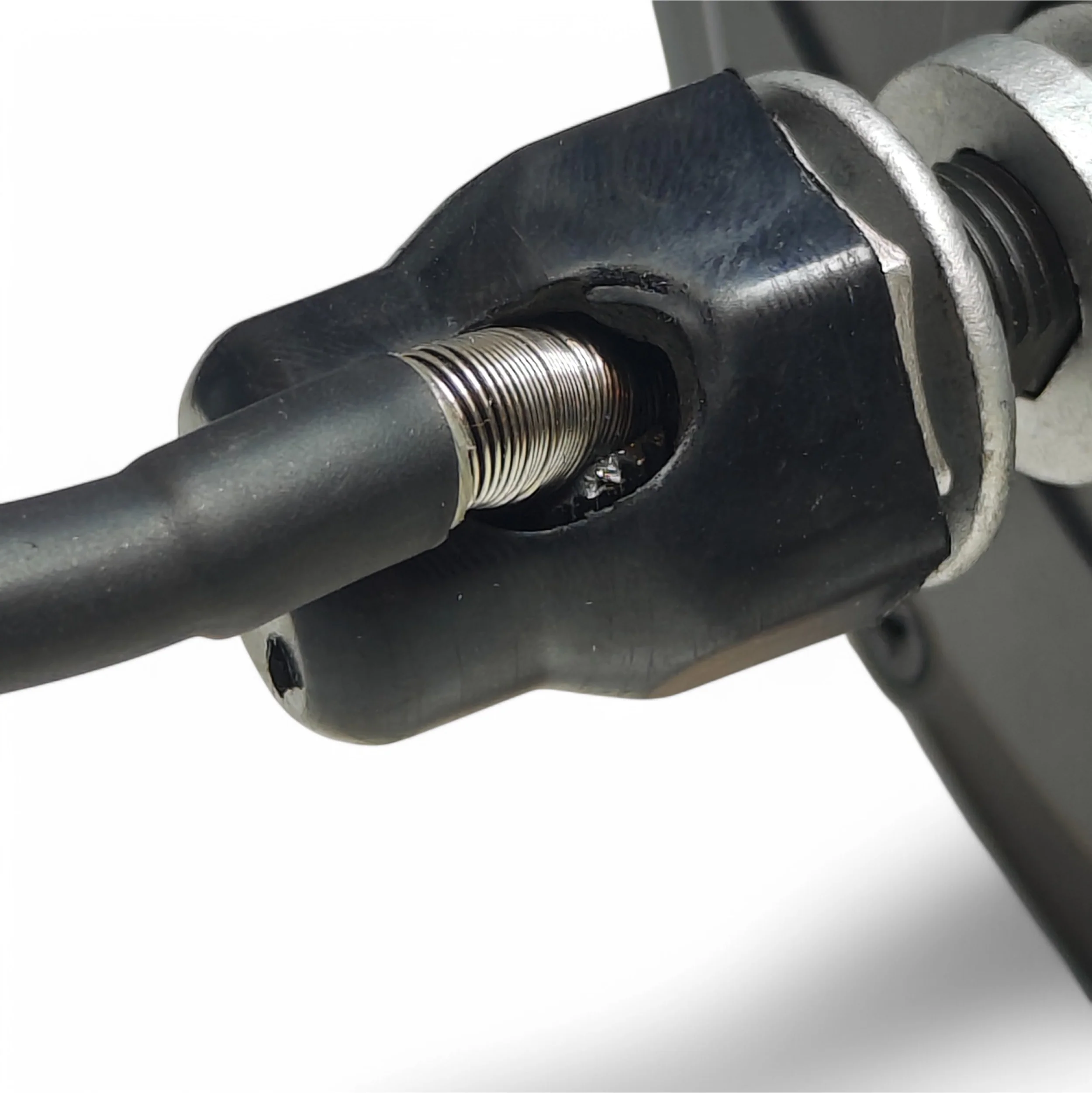

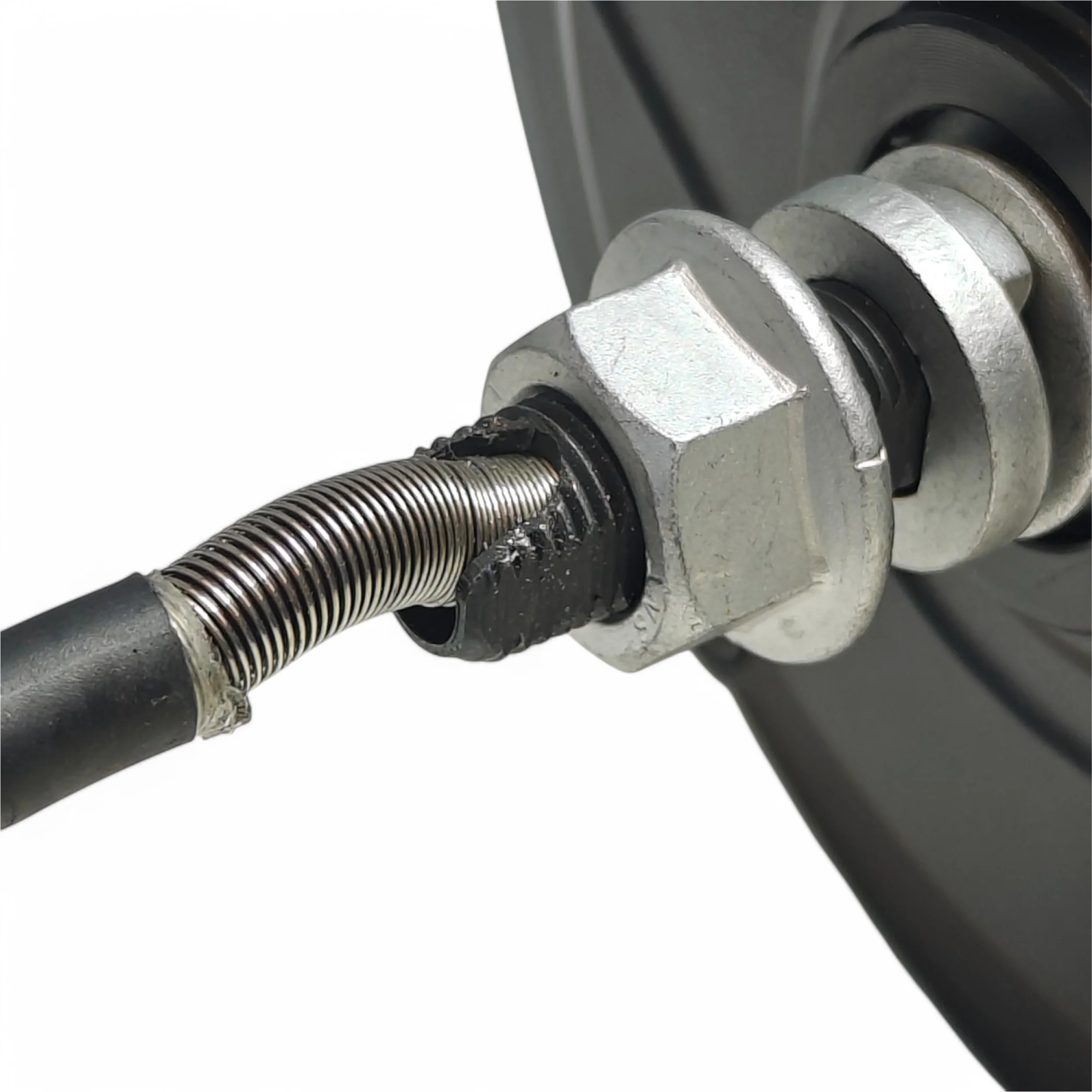

• Motor Cable:
  • Front motor: 1.5M 9 PIN Waterproof cable
  • Rear Freewheel and Rear Cassette Freewheel motor: 1M 9 PIN Waterproof cable

Model Torque (NM)

Model	Torque (NM)
XF07 36V350W	35
XF08 36V250W	35
XF08C 36V250W	35
XF15F 48V350W	65
XF15R 48V500W	65
XF15C 48V500W	65
XF15C 36V350W	50
XF15R 36V350W	50



Package Includes:

•  1 x Motor
