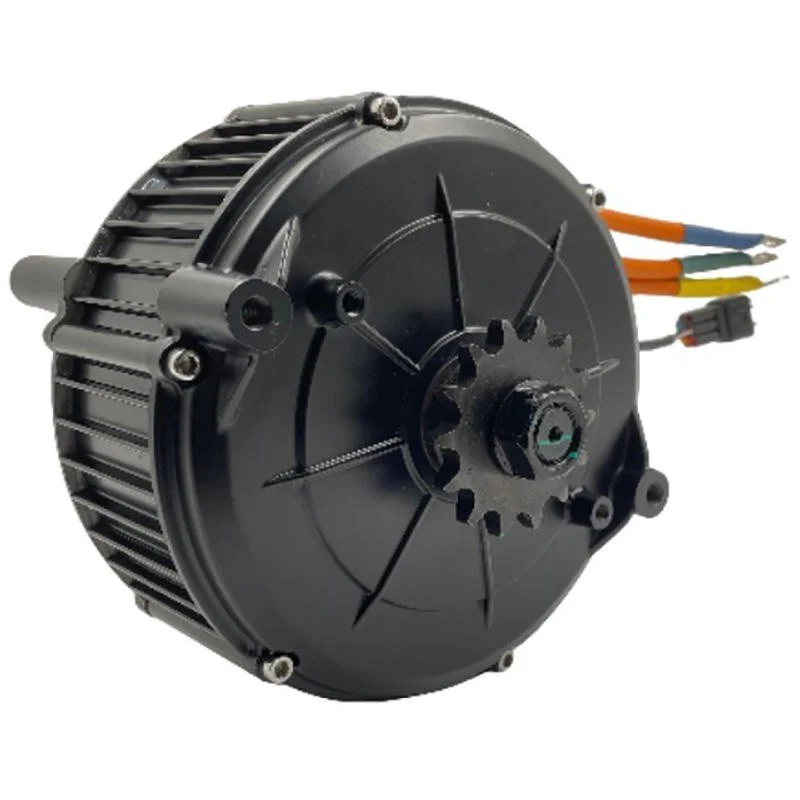

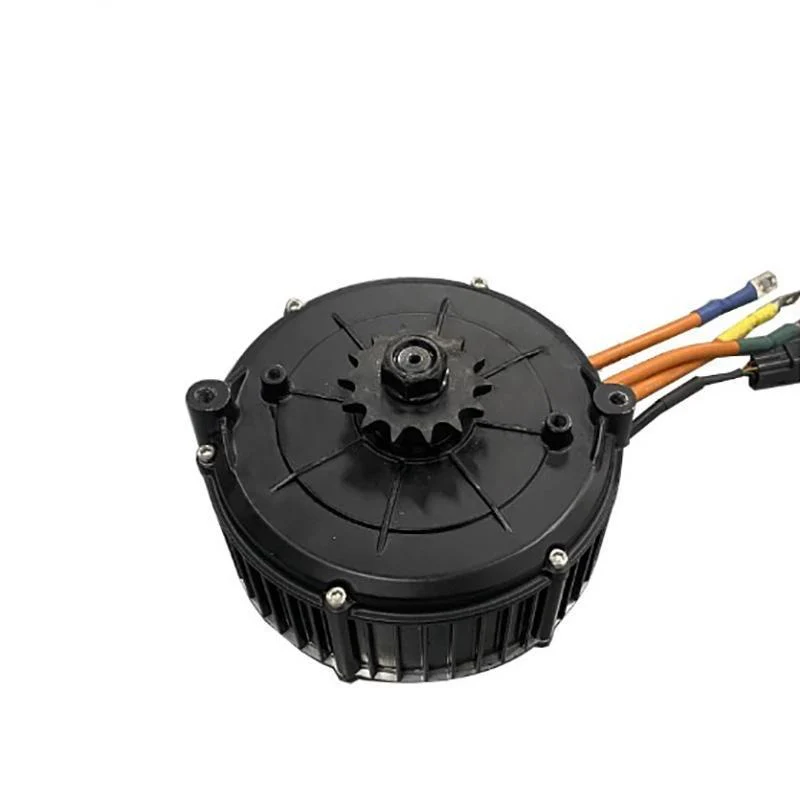

BLDC Mid-Drive QS165 35H 48-72V 5KW Hall Type Dirt Bike

QS Motor 165 Center Mounted Single Motor 5000W 72V 35H Hall Version PMSM Mid Drive Motor for E-Bike Dirt Bike


Key Features
1) Light weight and small dimension compare to hub motor
2) High performance benefit from flux weakening
3) High efficiency during climbing, and better acceleration
4) Support regenerative braking

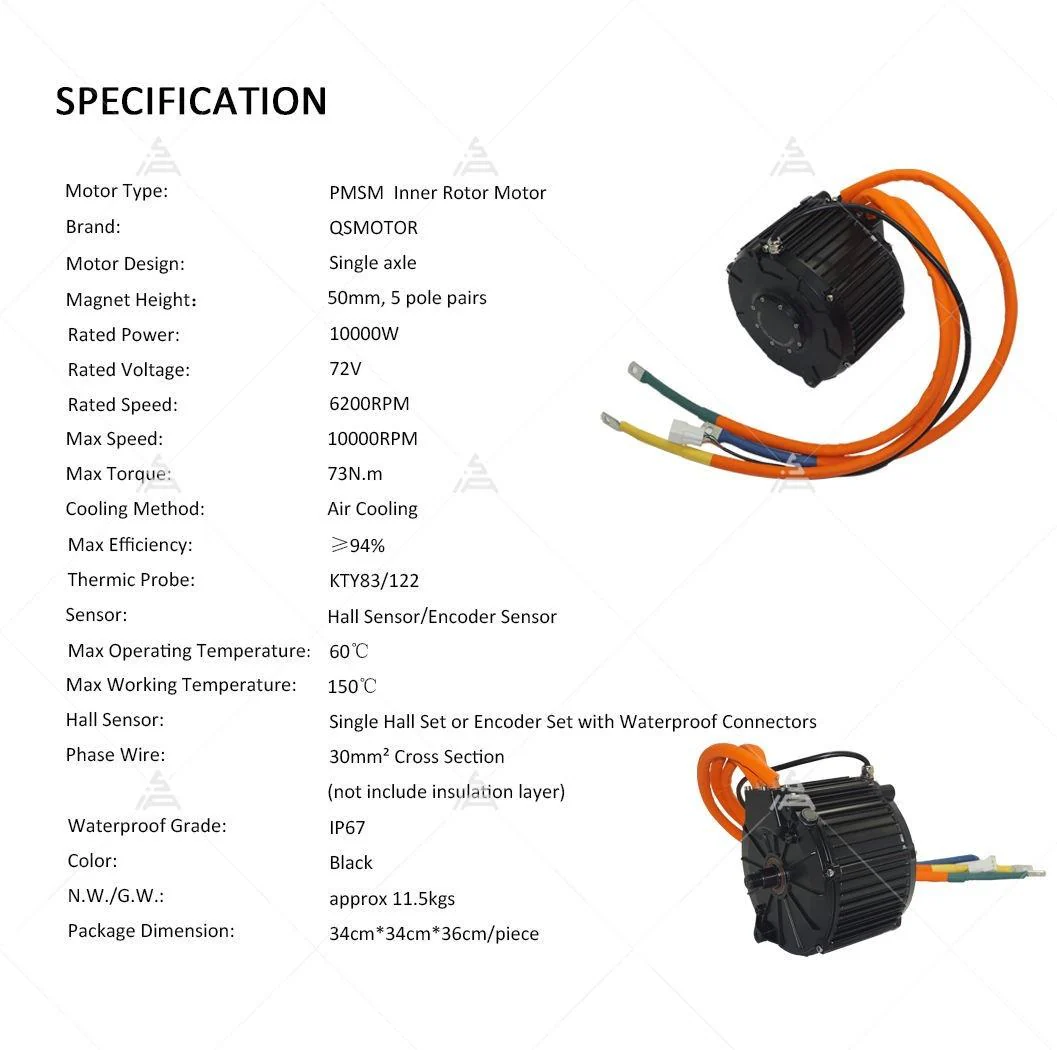

Motor type
PMSM Inner Rotor Motor
Motor Design
Single axle
Pole Pairs
5 pole pairs
Rated Power
5000W

Rated Voltage
72V
Motor Rated rpm
3400RPM
Peak Torque
50N.m
Cooling Method
Air Cooling
Max Efficiency
94%
Winding Resistance Temperature
Glade F<=150 Centigrade ;     Glade H<=180 Centigrade
Sensor Type
Hall

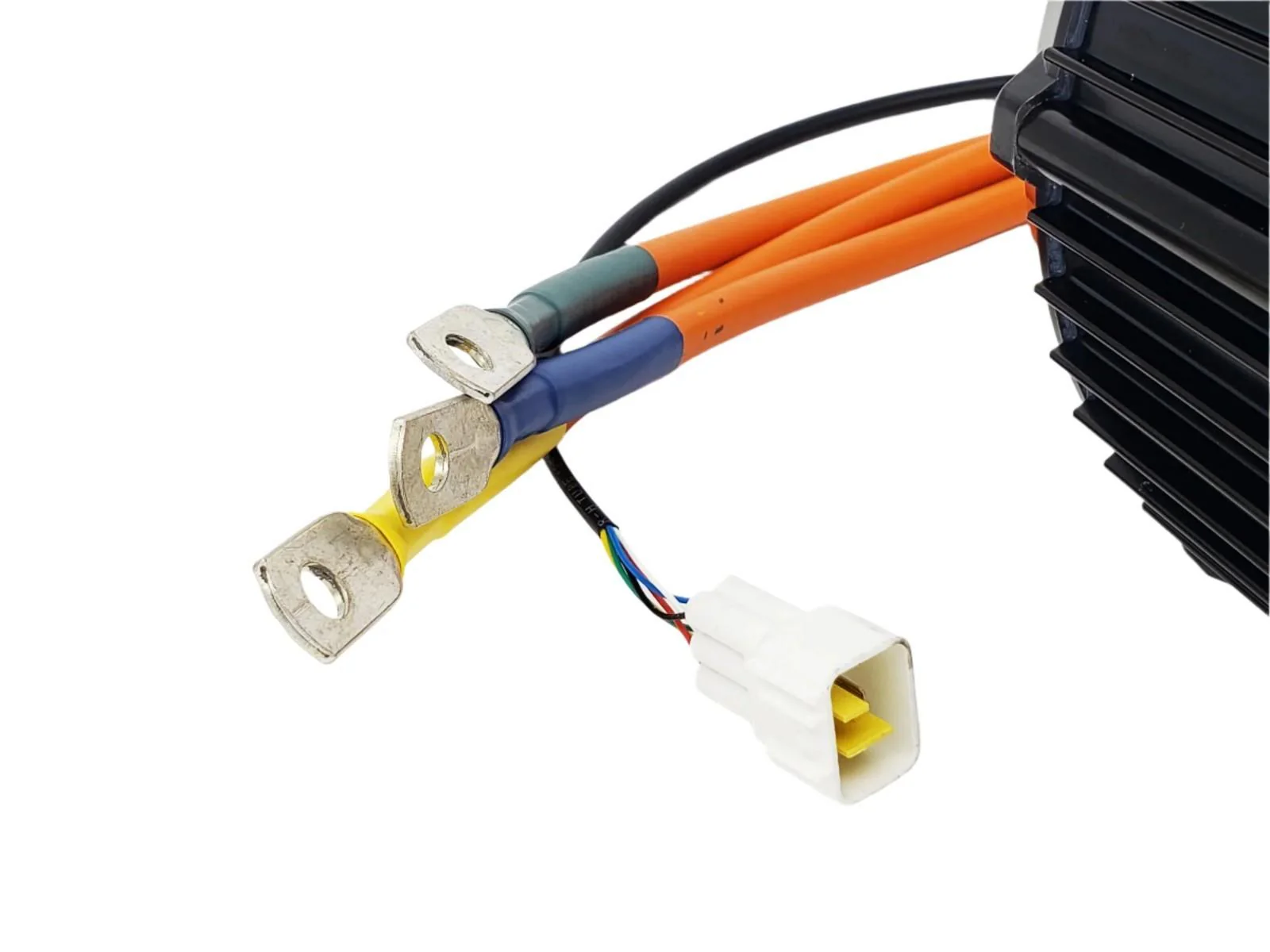

Phase Wire
16mm2 Cross Section ( not include insulation layer)
Waterproof Grade
IP67
N.W./G.W.
8.4kg / 10.5kg
Packing Demension
32cm *32mm * 37cm
$260.74

Original: $744.96

-65%
BLDC Mid-Drive QS165 35H 48-72V 5KW Hall Type Dirt Bike—

$744.96

$260.74

Product Information

Shipping & Returns

Description

QS Motor 165 Center Mounted Single Motor 5000W 72V 35H Hall Version PMSM Mid Drive Motor for E-Bike Dirt Bike


Key Features
1) Light weight and small dimension compare to hub motor
2) High performance benefit from flux weakening
3) High efficiency during climbing, and better acceleration
4) Support regenerative braking
Motor type
PMSM Inner Rotor Motor
Motor Design
Single axle
Pole Pairs
5 pole pairs
Rated Power
5000W

Rated Voltage
72V
Motor Rated rpm
3400RPM
Peak Torque
50N.m
Cooling Method
Air Cooling
Max Efficiency
94%
Winding Resistance Temperature
Glade F<=150 Centigrade ;     Glade H<=180 Centigrade
Sensor Type
Hall
Phase Wire
16mm2 Cross Section ( not include insulation layer)
Waterproof Grade
IP67
N.W./G.W.
8.4kg / 10.5kg
Packing Demension
32cm *32mm * 37cm
