Bafang BBSHD Can-Bus 52V 1000W Mid-drive Bicycle Kit E-bike Conversion Kits

Bafang BBSHD Can-Bus 52V 1000W Mid-drive Bicycle Kit E-bike Conversion Kits

Notes

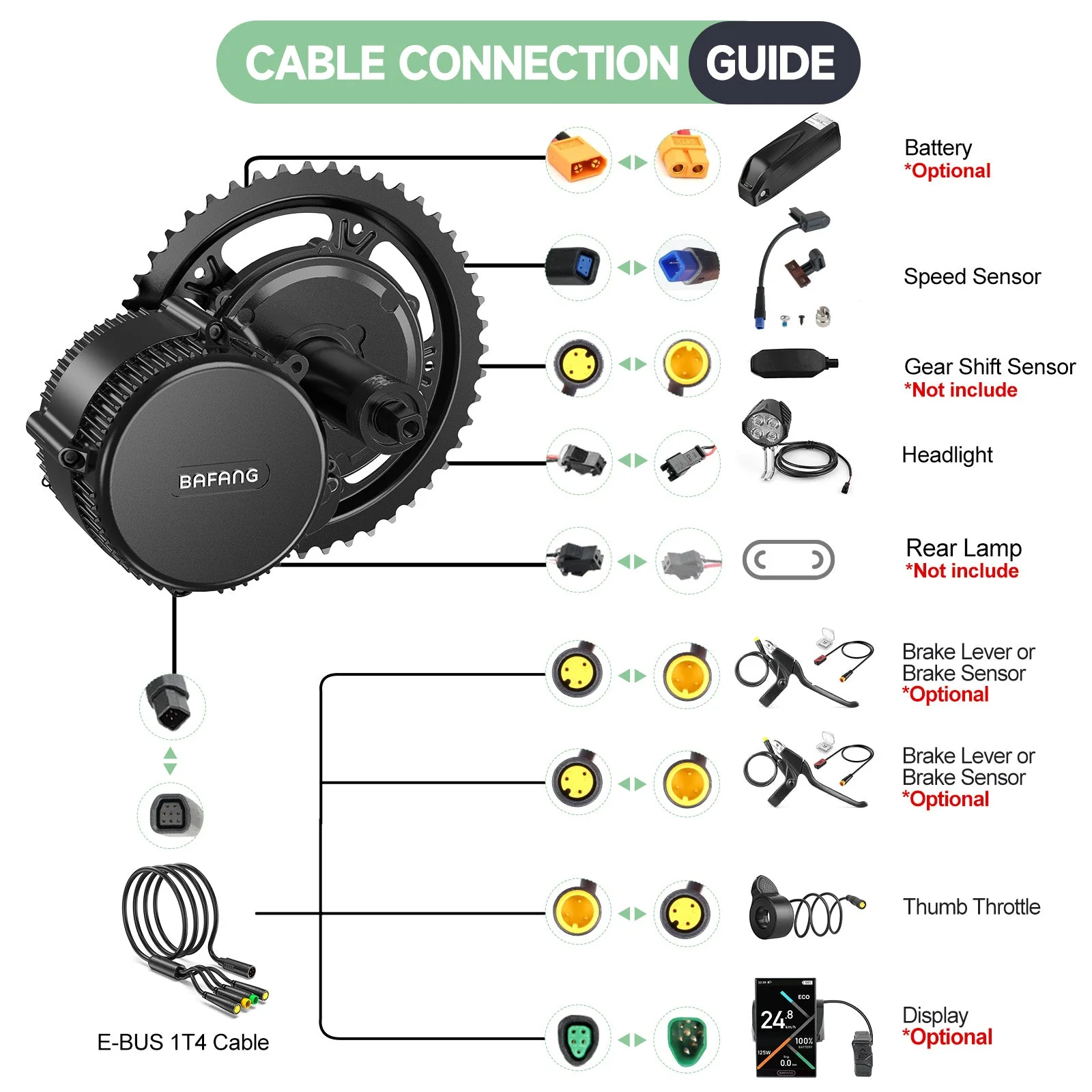

Before installing the motor, please follow the steps in the manual to connect the motor to see if the motor can work normally. Please DO NOT remove any connection with the power supply on.  If you have any problems, feel free to contact us first, please.

Product details:

• Model: Bafang BBSHD
• Position:  Mid Drive Motor
• Power: 1000W
• Voltage: 52V
• Current Controller: 28A
• No Load Speed (RPM) : 160
• Load Speed (RPM) : 140-150
• Maximum Torque: 160 Nm
• Maximum Speed: 60 km/h
• Efficiency: > 80%
• PAS Sensor: Speed sensor
• Reduction Ratio: 1:21.9
• Certification: CE/EN 14764/ROHS
• Protection: IP65
• Motor Weight: 5.6kg
• Motor Kit Weight: 6-6.5kg

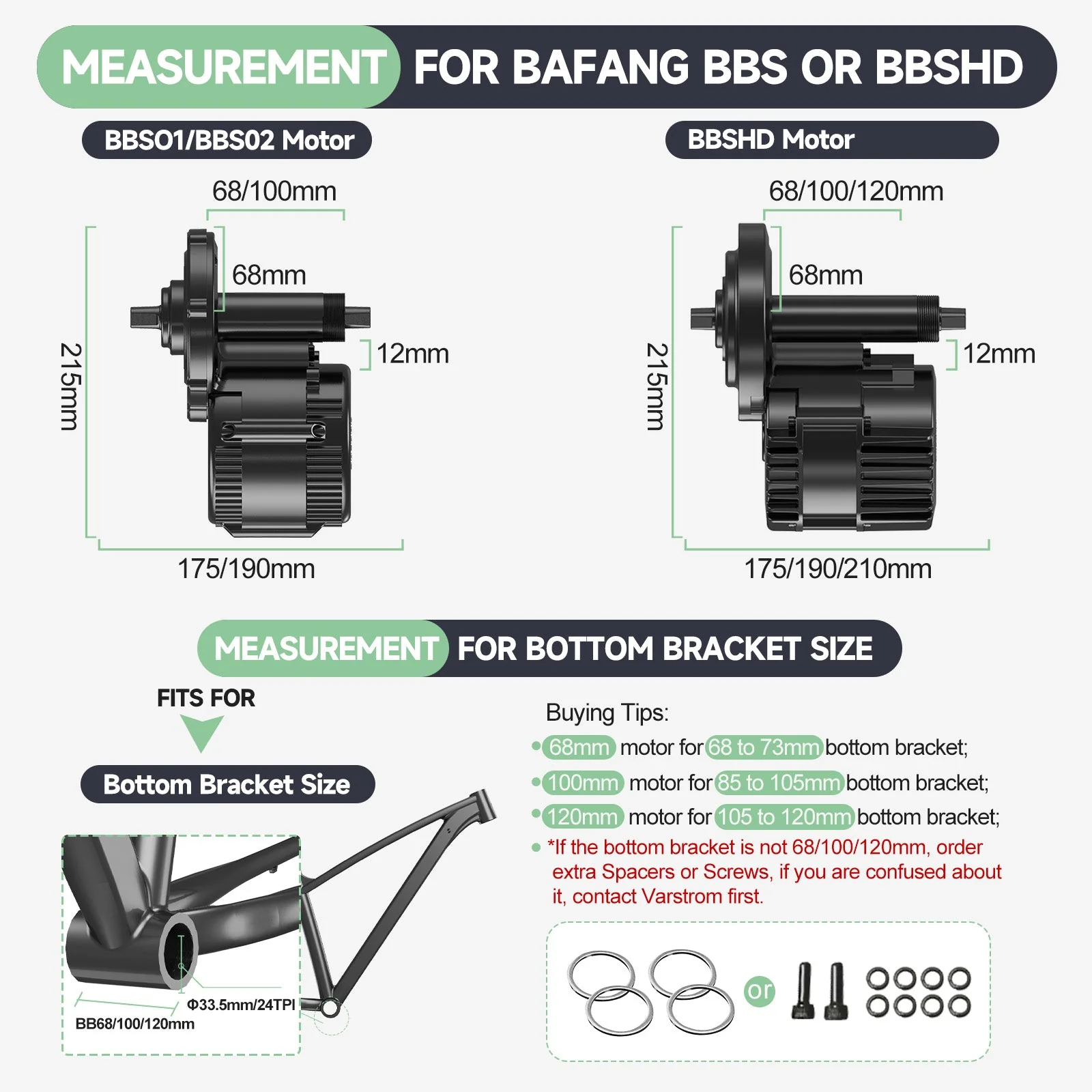

• Length Of Bottom Bracket: 68mm
• Motor Operating Temperature: -20°C-45°C

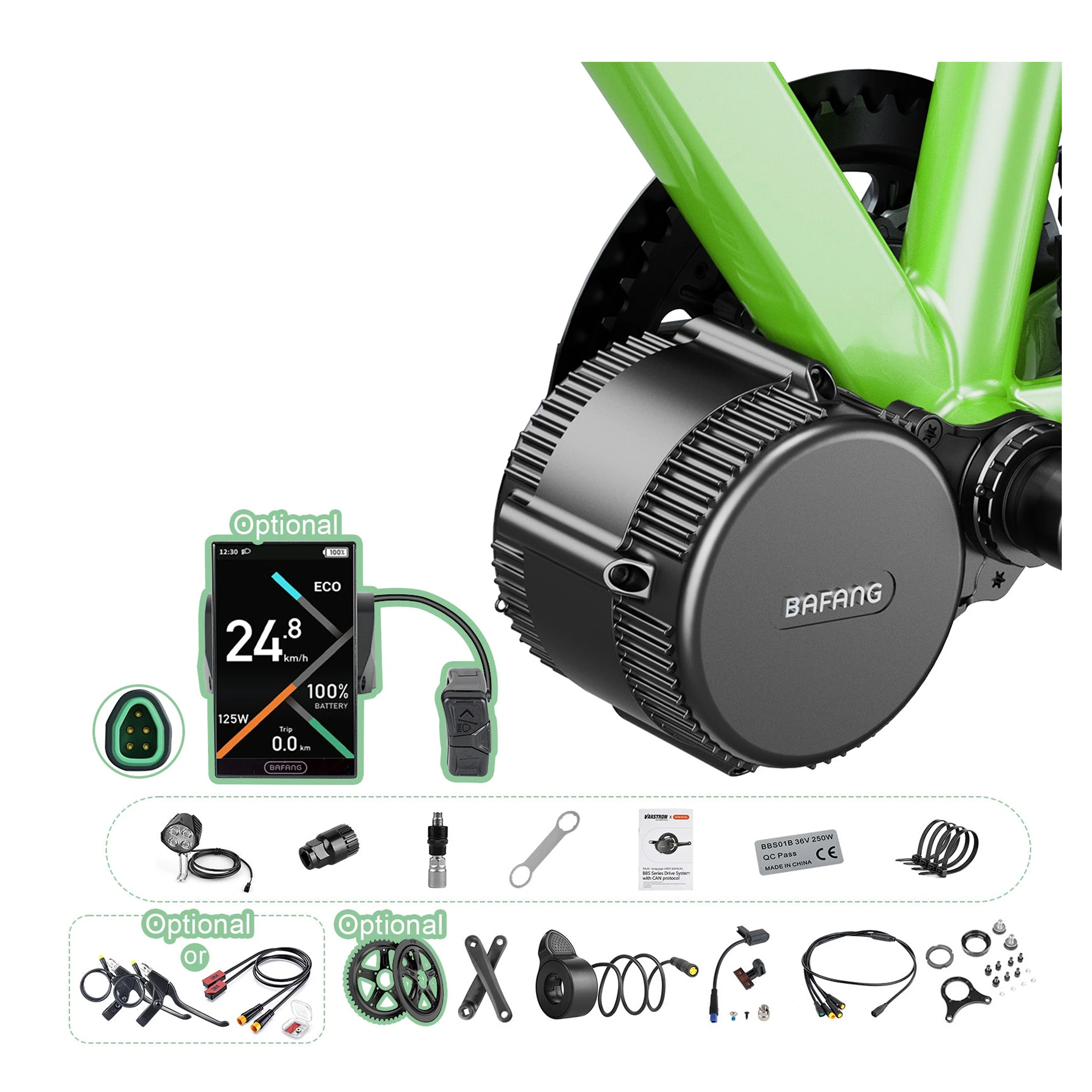

Package Included

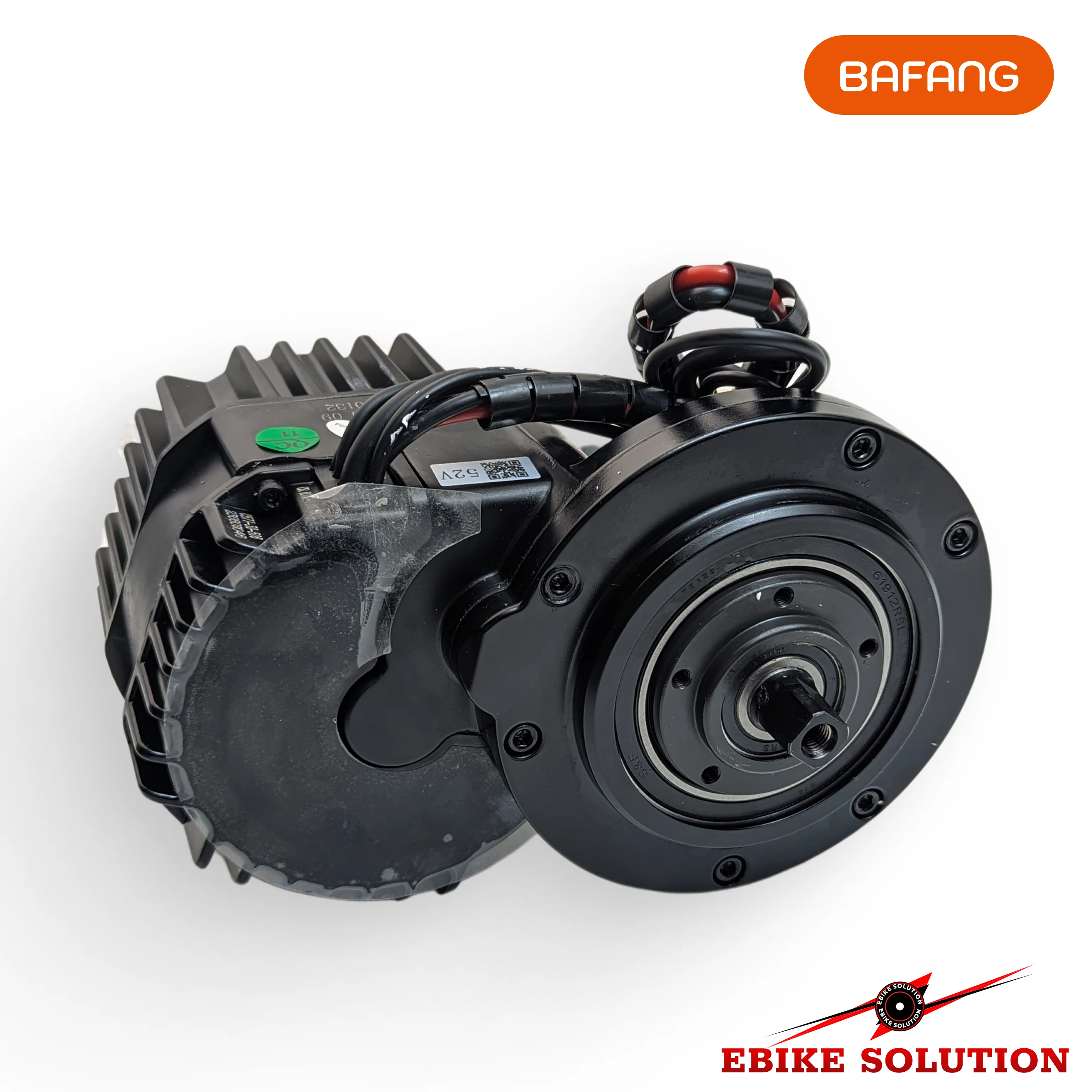

• 1 52V 1000W Mid Drive Motor built in controller
• 1 Pair Brake Sensors
• 1 Pair Crank
• 1 Pair Chainwheel(optional)
• 1 Set  Thumb Throttle
• 1 Set  Speed Sensor

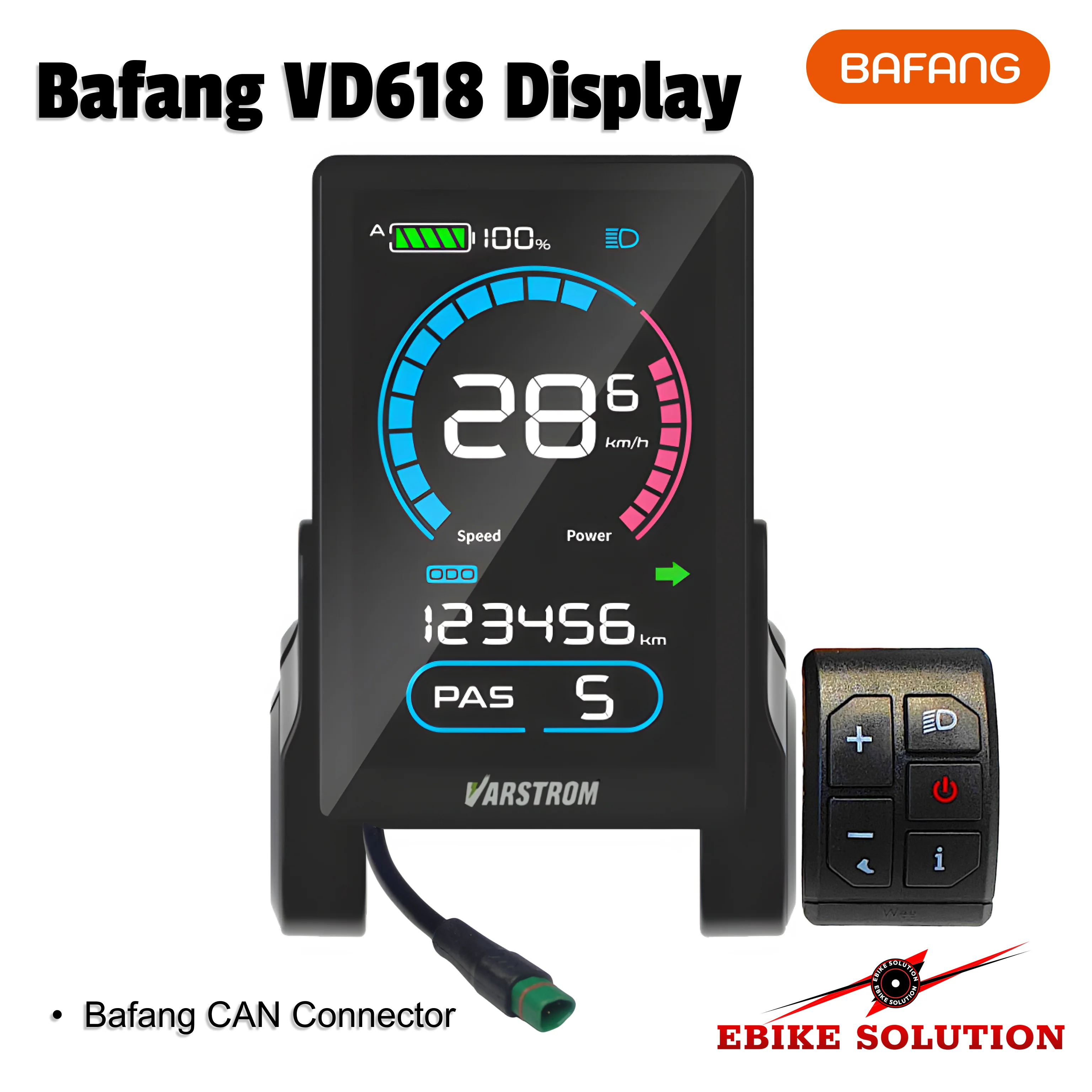

• 1 X Display(optional)
• 1 X 1T4 Cable
• 1 X Accessories
• Gifts: 1 PC 6V Front Light + 1 PC Gloves + 1 PC Install Tool Wrench + 1 PC Crank Removable Tool + 1 PC XT60 Port Motor Battery Connector Cable + 1 set * Install Accessories for 68mm Bottom Bracket + Cable ties + User Manual

Package Includes:

• 1 X BBSHD Bafang Kit 52v 1000W
